Amp Academy Pedal

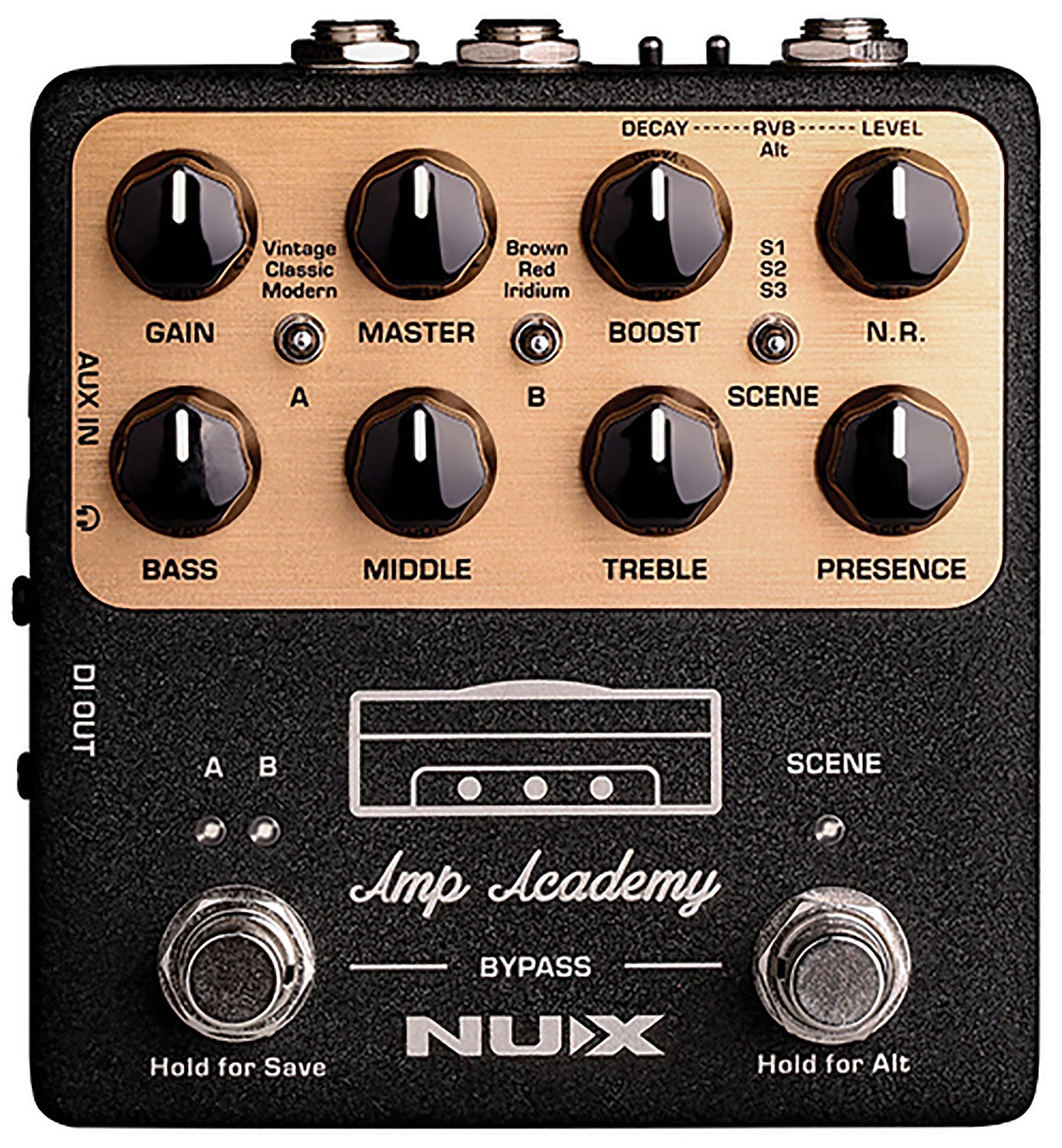

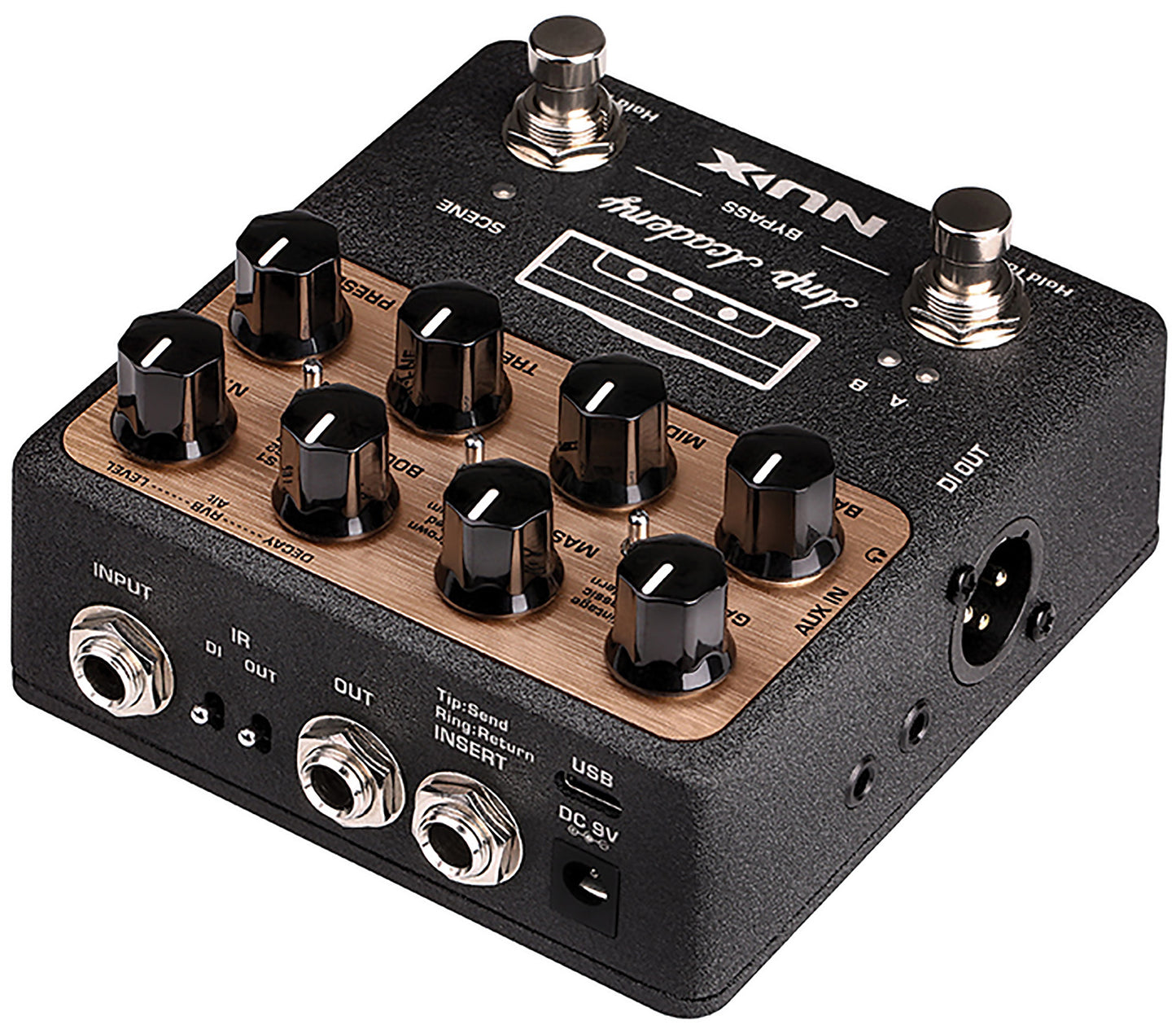

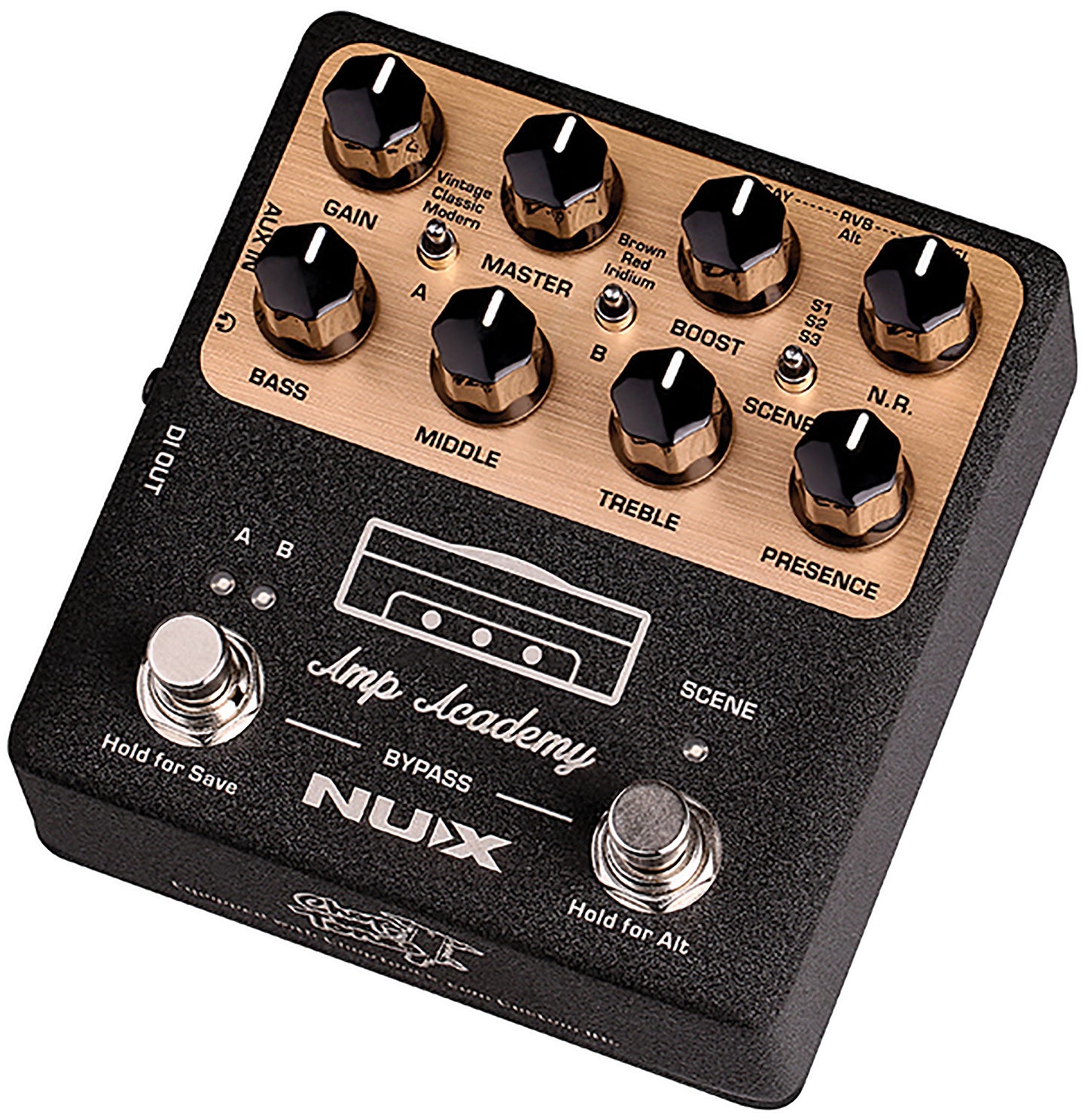

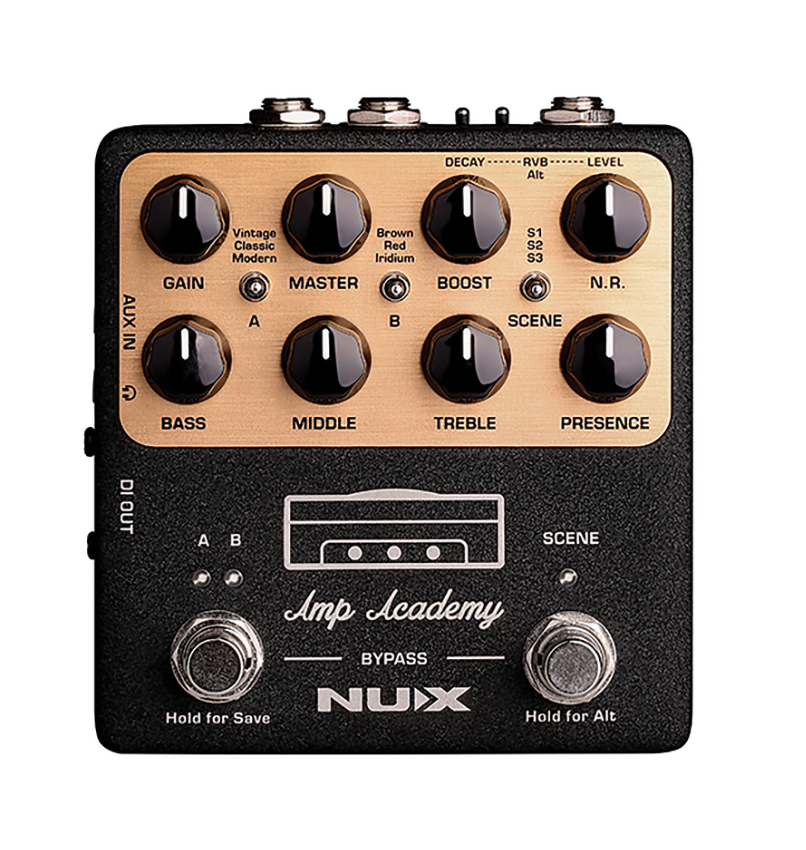

The Amp Academy is a complete valve amp modelling rig in a compact stomp box format. 3 storable scenes with 2 channels, selectable from 6 separate classic amplifier models. Each patch has Gain, Master and Boost for overdriven tones and 3-band EQ + Presence control. As with a real professional tube amp, there is an effects loop and internal reverb effect. The addition of a noise gate helps to keep everything silent when no notes are played. Balanced or unbalanced outputs give flexible options for live performances via FRFR speakers, mixing console, or even for direct recording. All settings are fully editable via USB using the proprietary Amp Academy software and even self-made or third party IRs can be loaded for custom amp modelling. Next time you are carrying your heavy valve amplifier around, consider this incredibly flexible and pocket-sized alternative.

• Free to download editor software @ www.nuxefx.com
• Accurate classic amplifier modelling and IR loader
• 3-band EQ, Presence and Reverb effect
• 6 separate amplifier types
• Effects send/return loop for inserting other pedals
• Suitable power adaptor 173.290UK

• Power supply - 9Vdc, 300mA (min) pin-negative (not included)
• Controls - Gain, Master, Boost, NR, Bass, Middle, Treble, Presence

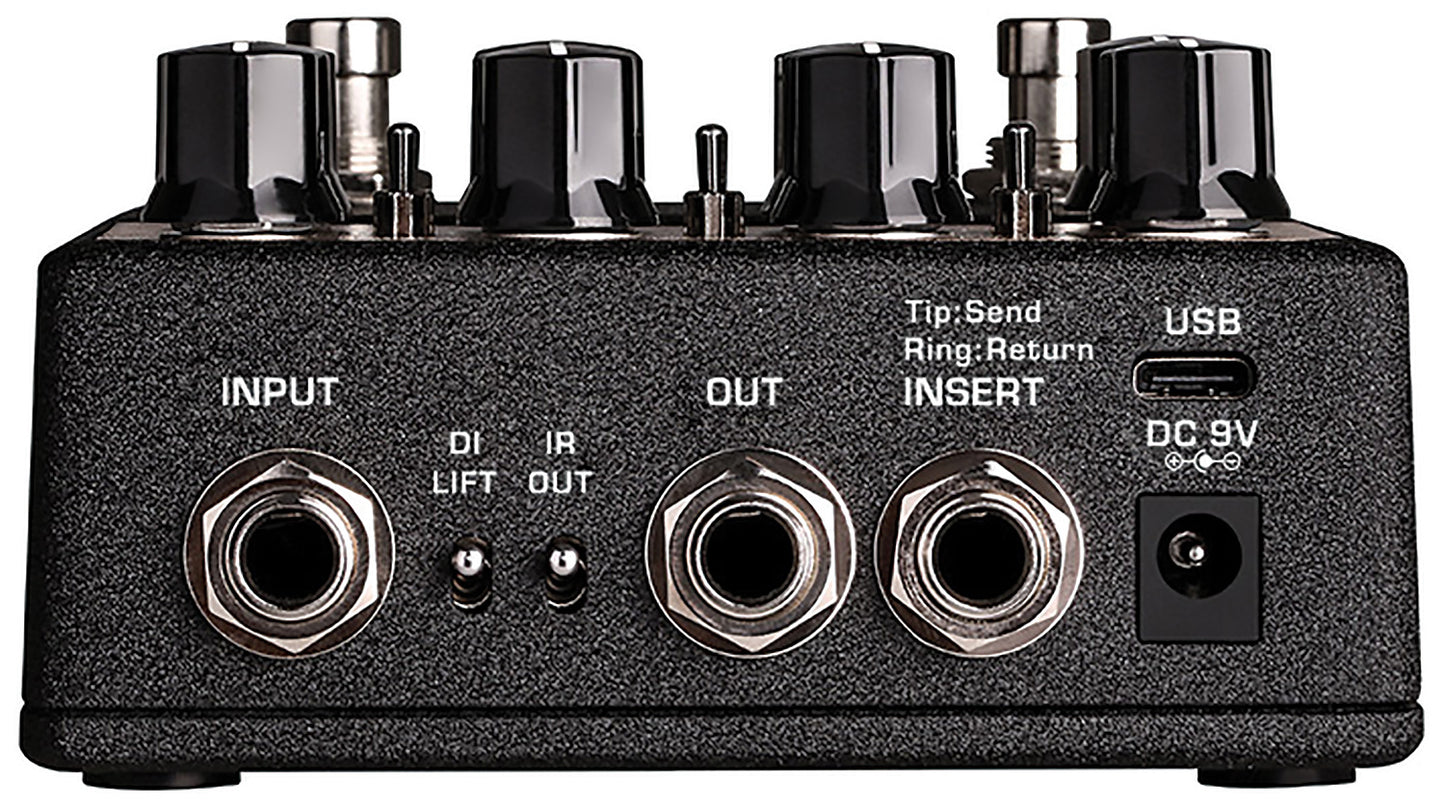

• Connections - Guitar in/out (6.3mm), Loop (6.3mm TRS), Aux (3.5mm), DI (XLR)
• Dimensions - 115 x 105 x 58mm
• Weight - 440g
