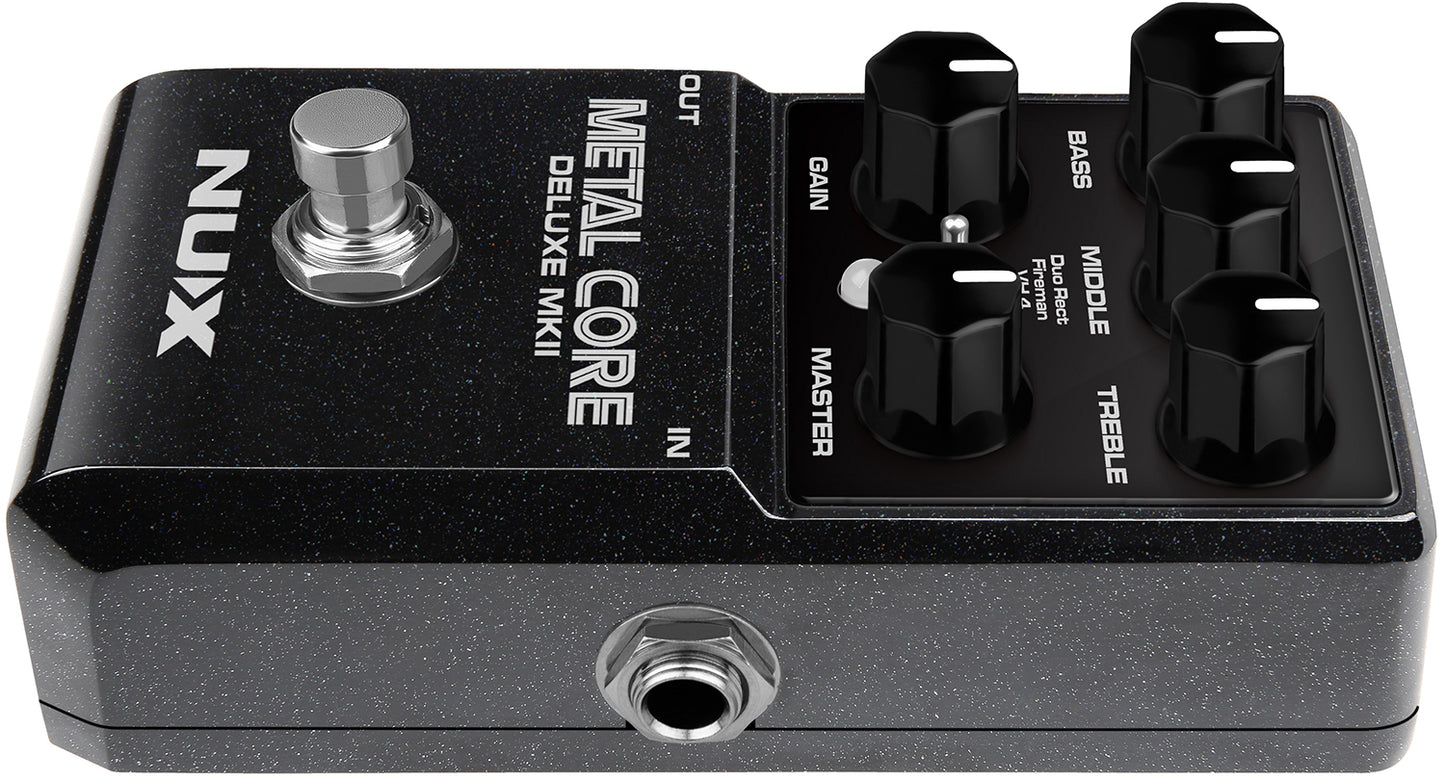

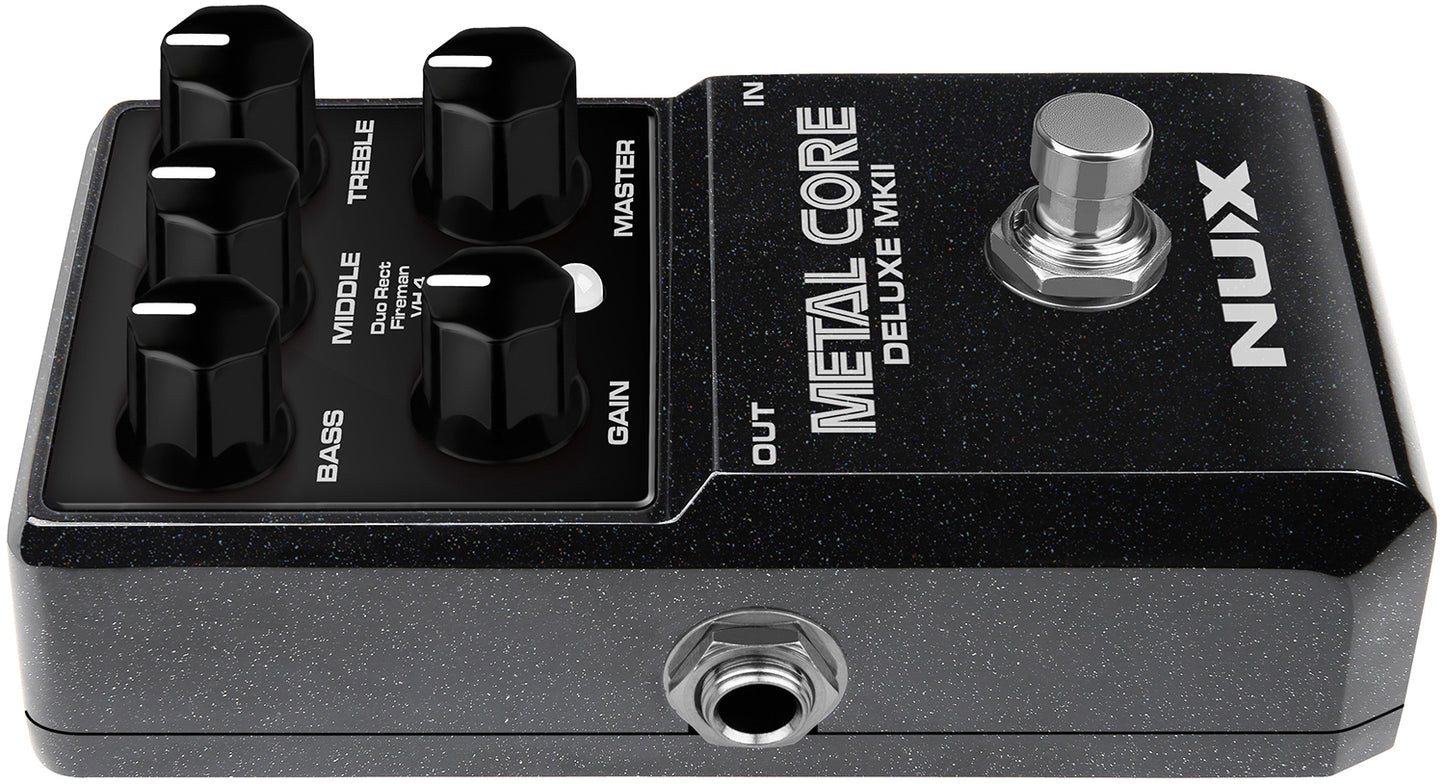

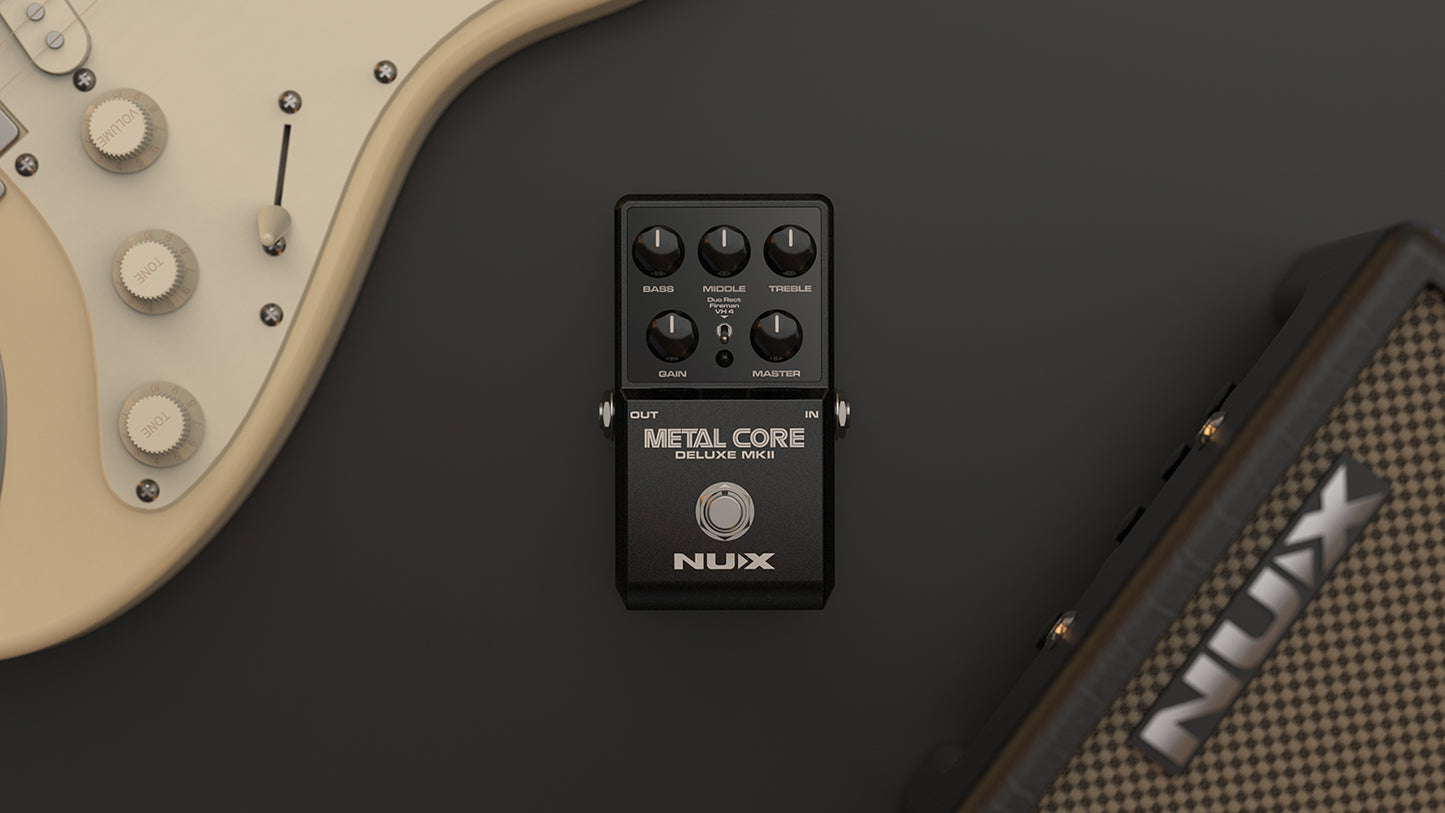

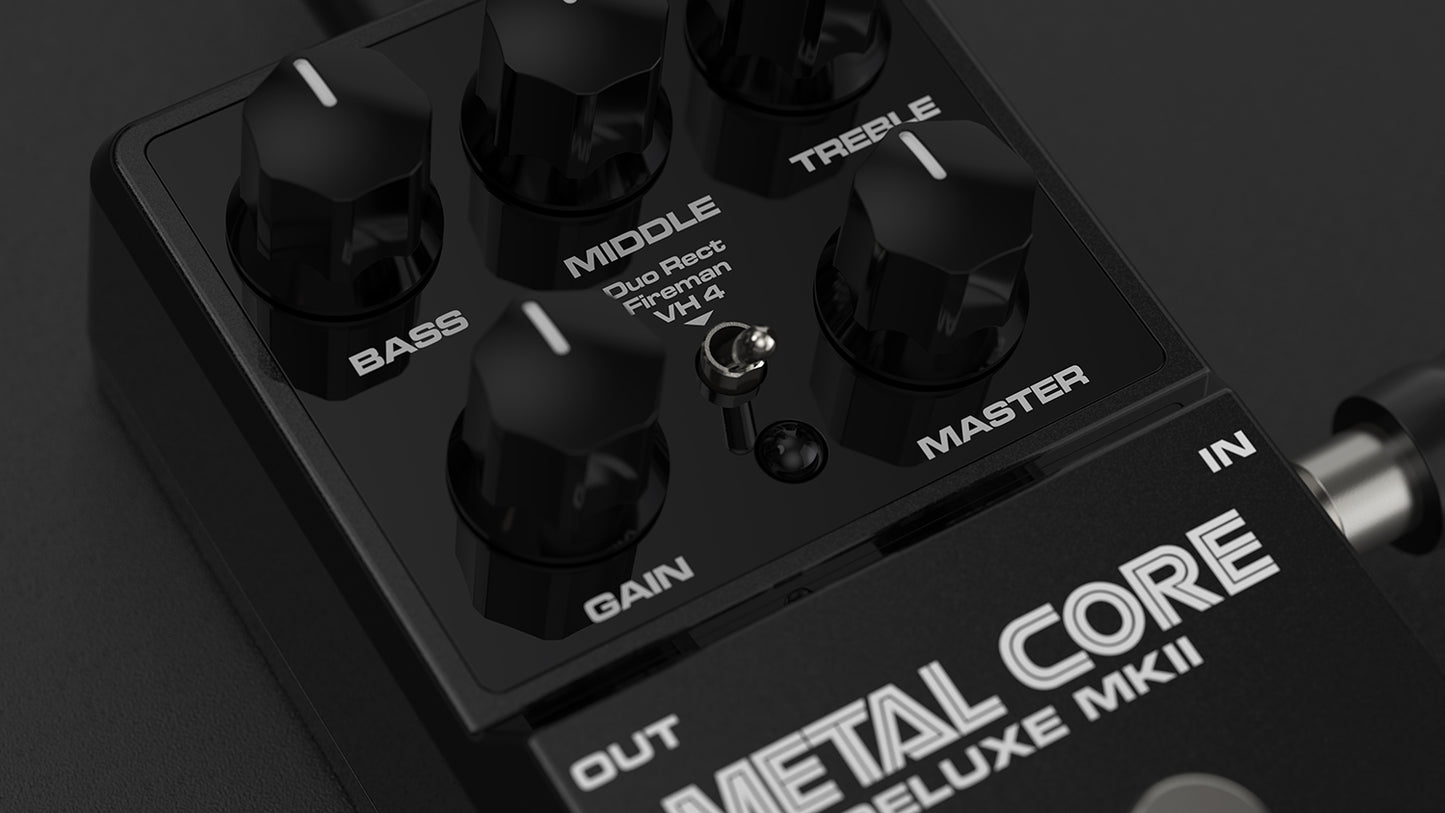

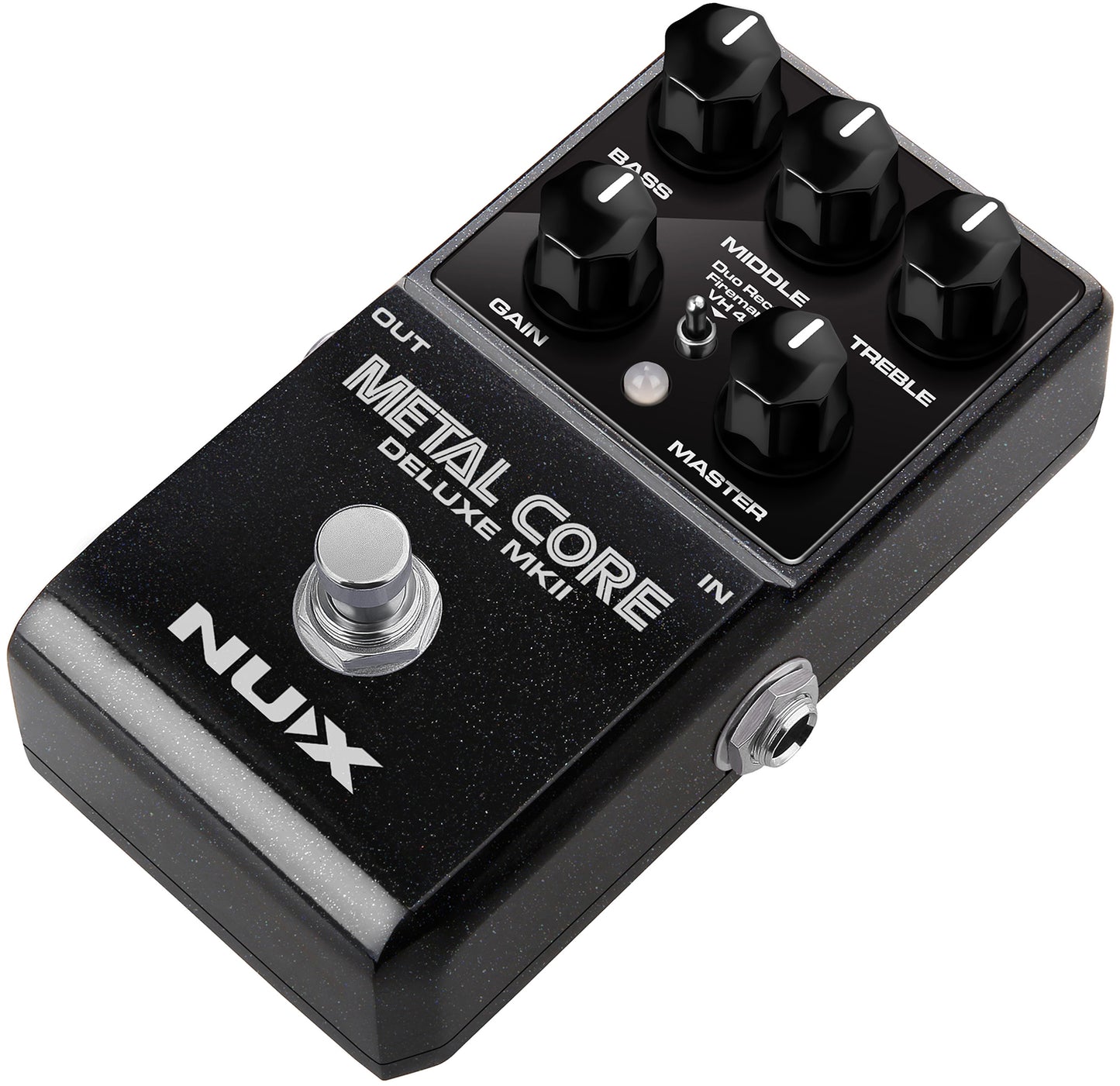

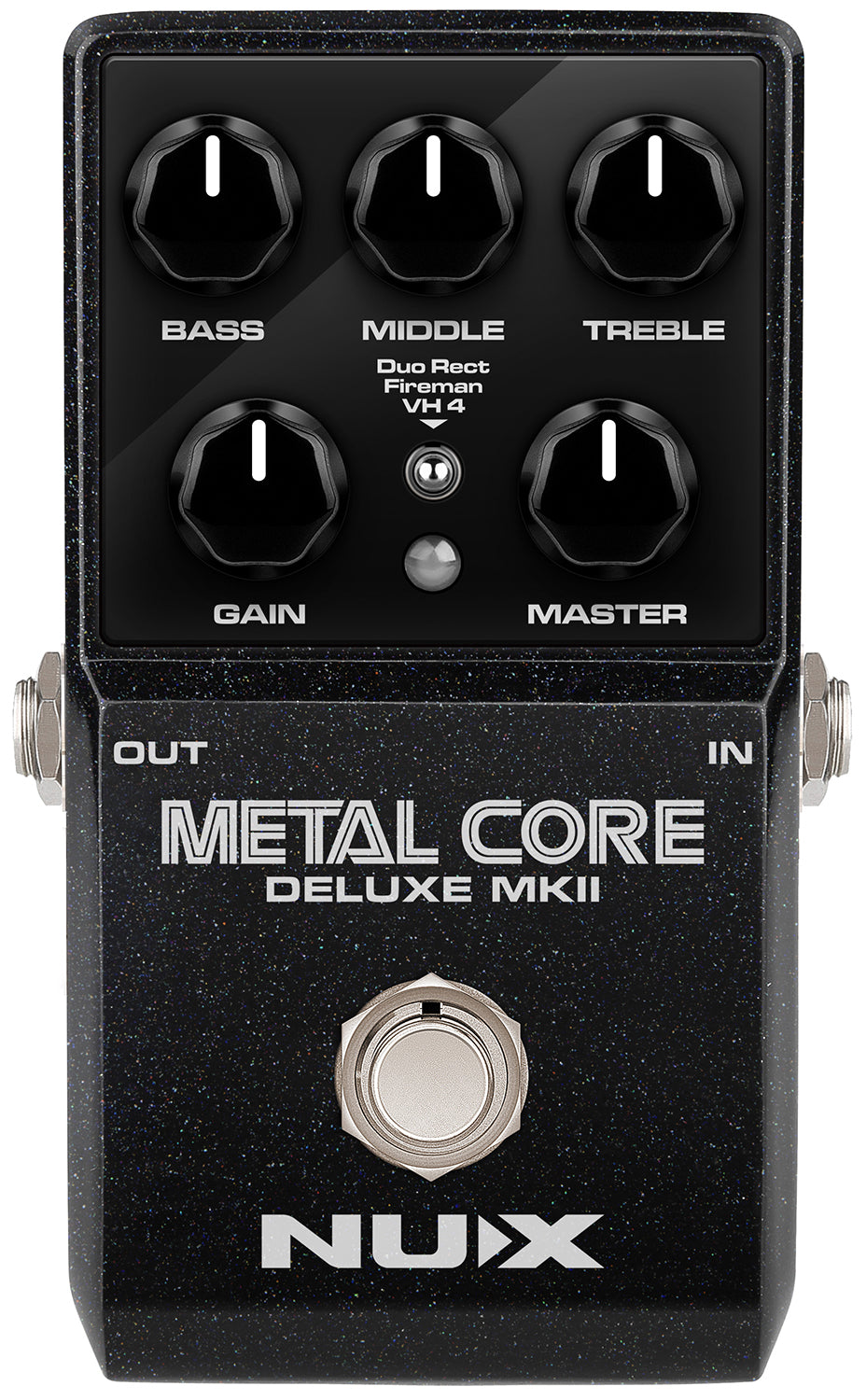

Metal Core Deluxe mkII Pedal

Evolving from the popular Metal Core Deluxe pedal, the mkII version now has 3 selectable amplifier models based on much-revered high gain valve amplifiers. Now with an additional Middle control, the 3-band EQ pairs with Gain and Master to offer a full completement of real amplifier controls, with settings stored into each of the 3 amp models for fast recall. Metal Core Deluxe mkII goes a step further to include IR cabinet simulation, meaning that it can be used directly into a full-range PA system, or without IR simulation into the front of a guitar amplifier as a hard-edged drive pedal. Whichever wiring method is used, Metal Core Deluxe mkII delivers the full breadth of metal tones for hard rock to thrash.

• 3 distinct high gain amplifier models
• 3-band EQ
• Switchable IR cabinet simulation
• Settings auto-stored for each model
• True bypass
• USB-C for firmware updates & future software

• Power supply - 9Vdc (power adaptor required)
• DC input connection - DC5521 jack (for optional adaptor - pin-negative)
• Current consumption - <120mA
• Controls - Gain, Master, Bass, Middle, Treble, Model switch
• Modes - Duo Rect, Fireman, VH4
• Input - 6.3mm jack
• Output - 6.3mm jack
• Input impedance - 1M ohm
• Output impedance - 1k ohm
• Dynamic range - 104dB
• Dimensions - 122 x 72 x 47mm
• Weight - 270g
