MG-30 Multi-Effects Modeller Pedal

MG-30 is a top flight modelling effect processor from the NU-X range. Dual high speed processing offers accurate modelling of 30 different amplifier options, including bias tweaking for an extra dimension of response adjustment, all using the proprietary NU-X TSAC-HD algorithm. Impulse response programming presents a choice of 8 guitar cabinets, 8 bass cabinets, 8 microphones in 3 different axis positions and even 3 acoustic guitar emulation profiles. Once the main guitar tone is programmed, there are 8 effects blocks which can be assigned to different positions in the signal chain, including WAH, CMP, GATE, EFX, EQ, MOD, DLY & RVB. An expression pedal covers wah and swell effects among other possibilities. Each has modes and/or parameters which can be adjusted and saved within the patch as needed. Real-time editing uses rotary encoders and switches, making for a natural and organic process and all parameters and graphics are displayed on a vibrant 4" colour display. Add to this a fully functioning USB audio interface, phrase looper, PC/Mac editor/librarian/updater, aux input, effects loop, drum machine and NMP-2 foot-switch control and the MG-30 covers practically all bases. This unit provides all the processing power and audio quality that could be asked from any professional guitar processor at a fraction of the price of its component features.

• 4" colour LCD display
• Multi-function rotary & navigation controls
• High definition amplifier models
• Impulse response models for cabinets, microphones and acoustic emulation
• 8 distinct effect blocks with editable signal chain positions
• Built-in USB audio interface, editor/librarian and updater
• Built-in drum machine and phrase looper (up to 60secs)
• Assignable and adjustable expression pedal
• Ultra-low latency from dual NXP RT processors
• NMP-2 footswitch included for remote control
• 9Vdc power adaptor included

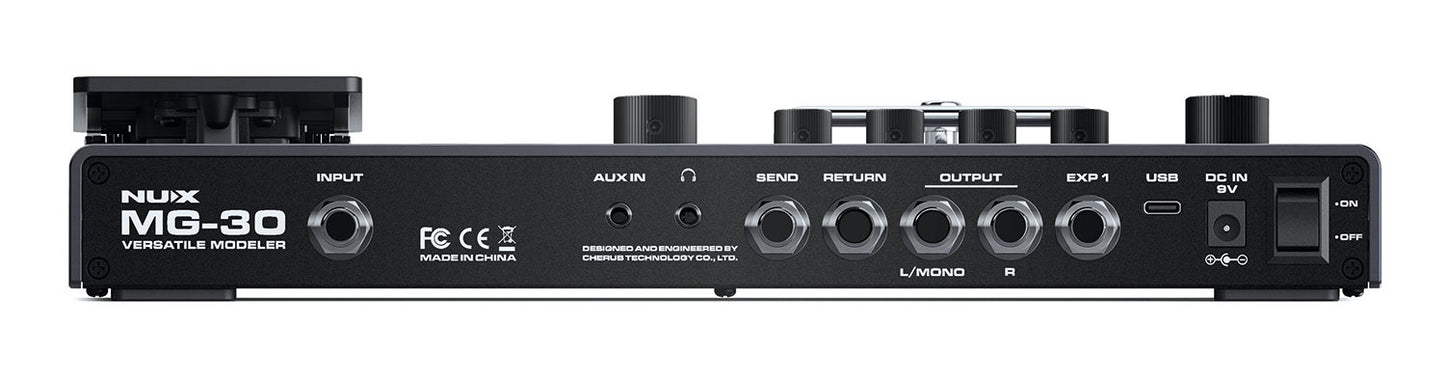

• Power supply - 9Vdc, 400mA pin-negative (adaptor included)
• Inputs - 6.3mm jack (guitar), 3.5mm jack (aux input)
• Outputs - 2 x 6.3mm jack (L/mono + R) to amp or mixer
• Sends : returns - 6.3mm jack send (1k ohm) & return (220k ohm)
• Headphone output - 3.5mm stereo jack
• USB port - USB type-C for audio interface, PC/Mac editing & updating
• Remote control connection - EXP1 TRS 6.3mm jack
• Sampling format - 48kHz, 32-bit
• Frequency response - 20Hz - 20kHz (±1dB)
• Input impedance - 1M ohm
• Output impedance - 1k ohm
• Dynamic range - 110dB
• Dimensions - 313 x 166 x 54mm
• Weight - 1.5kg
