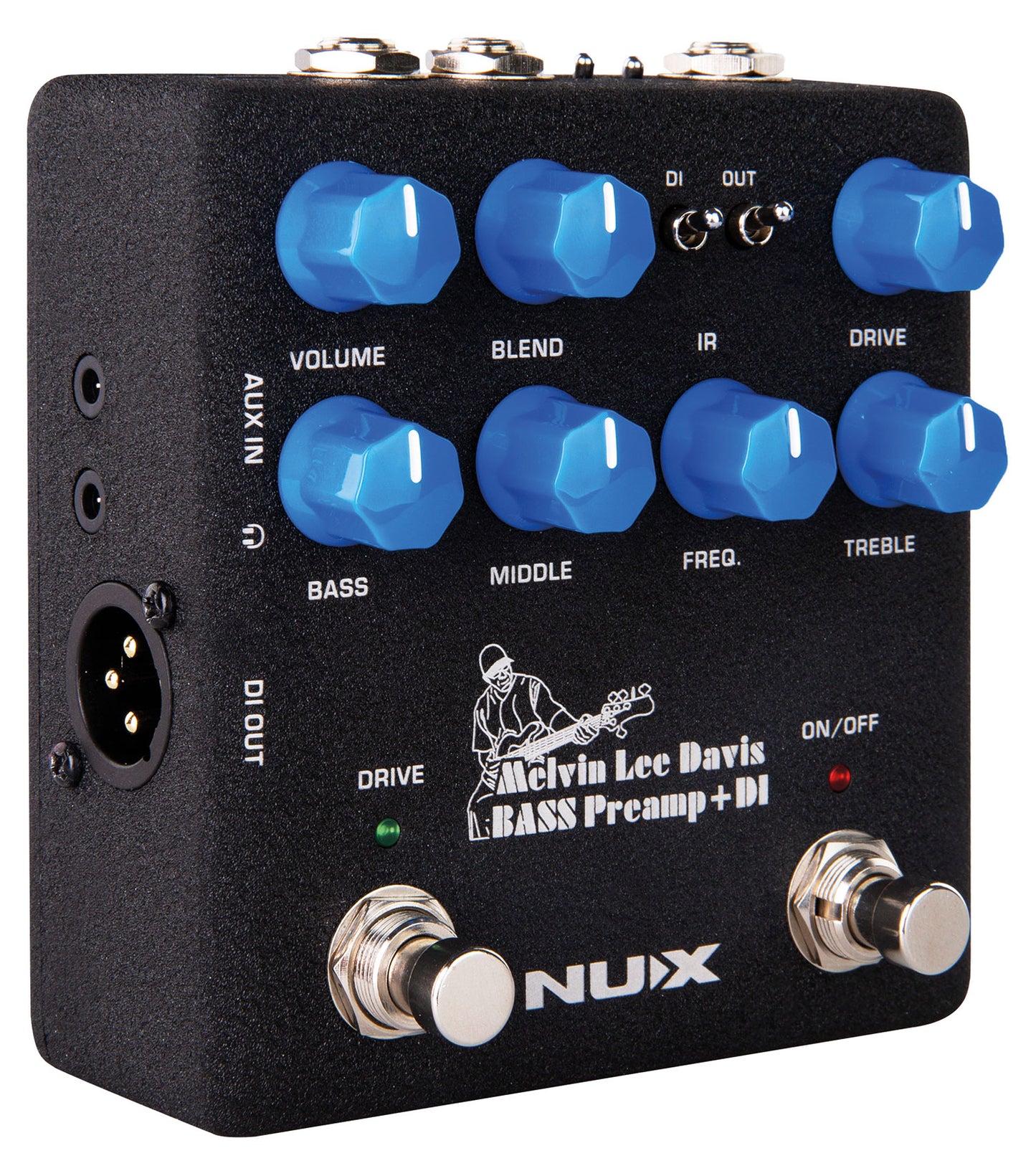

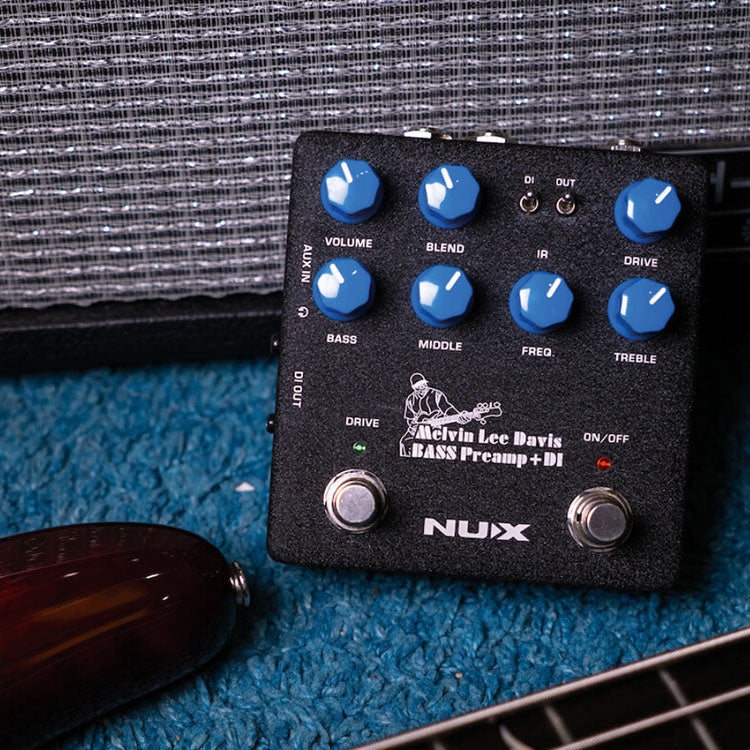

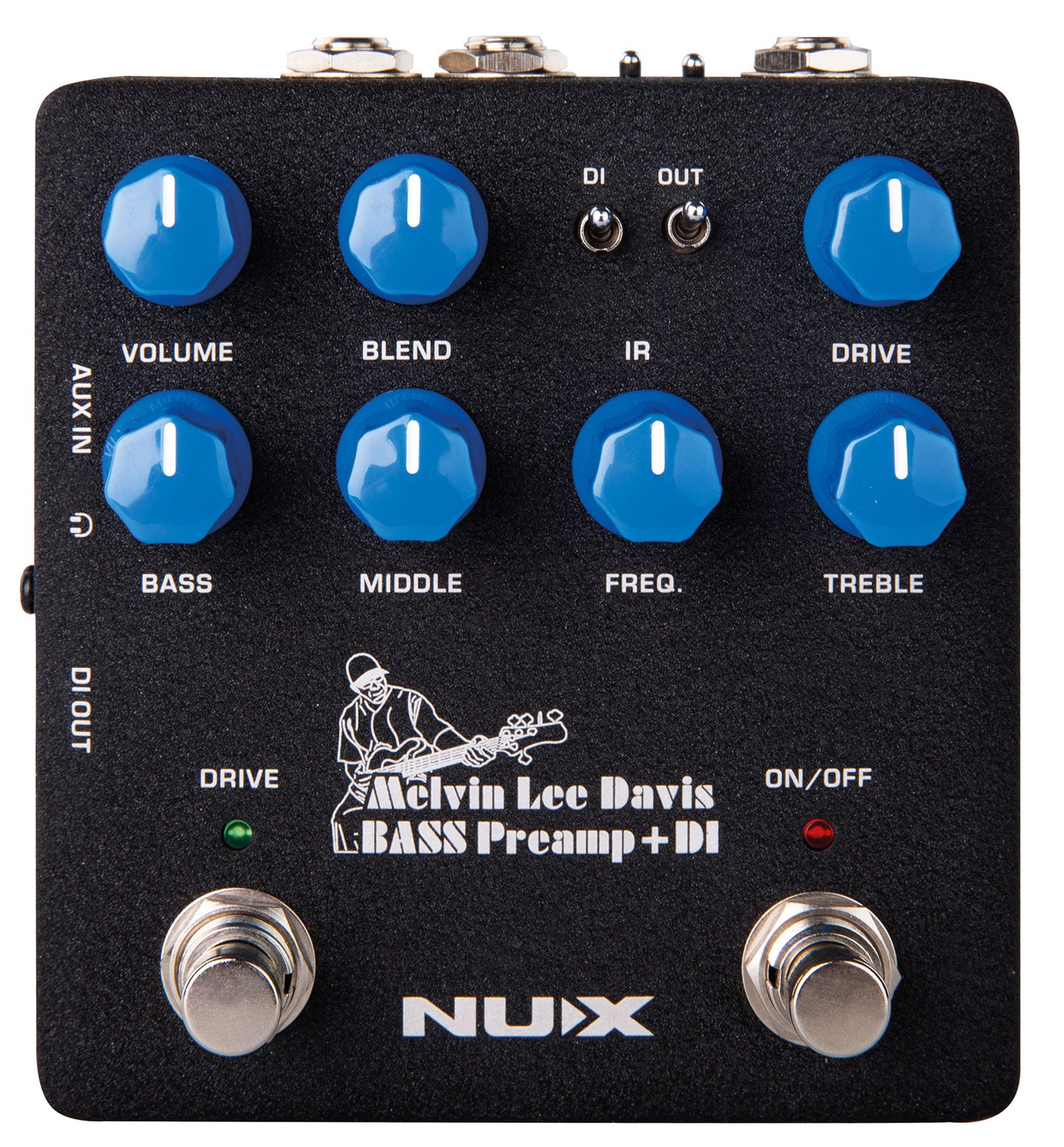

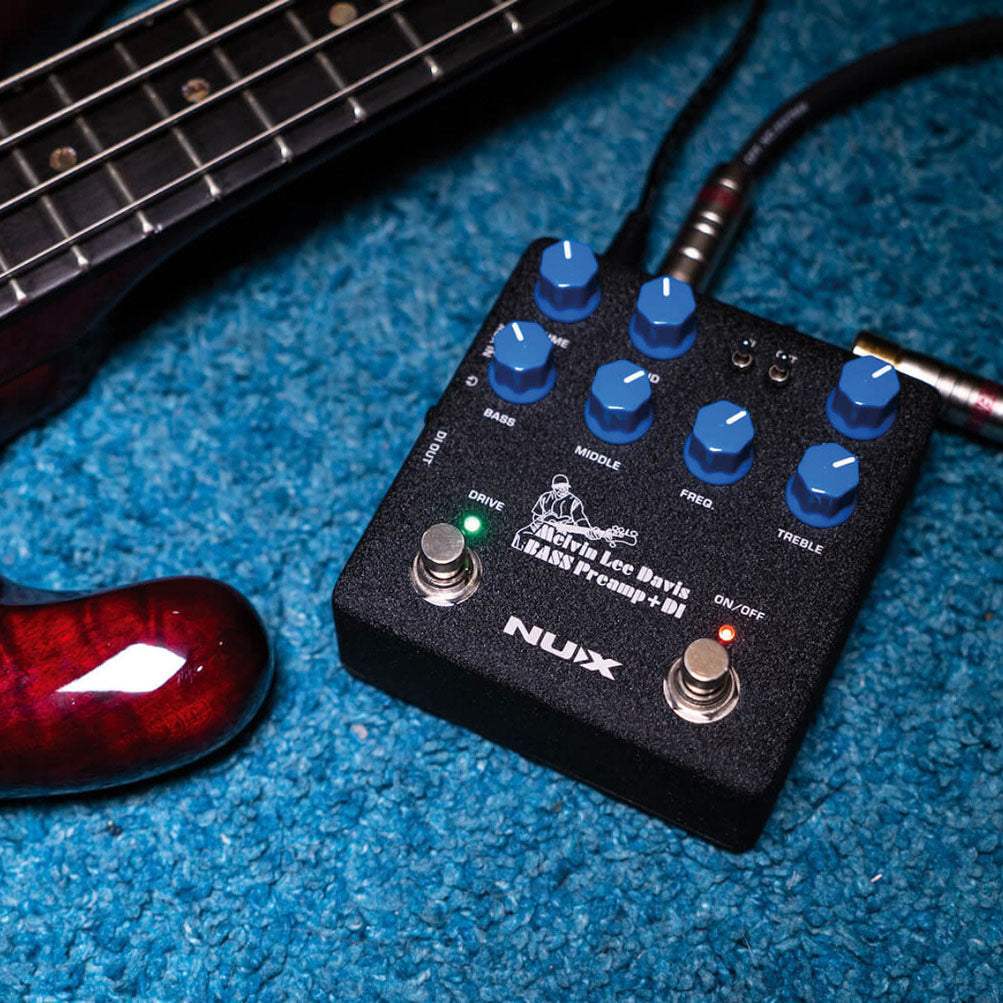

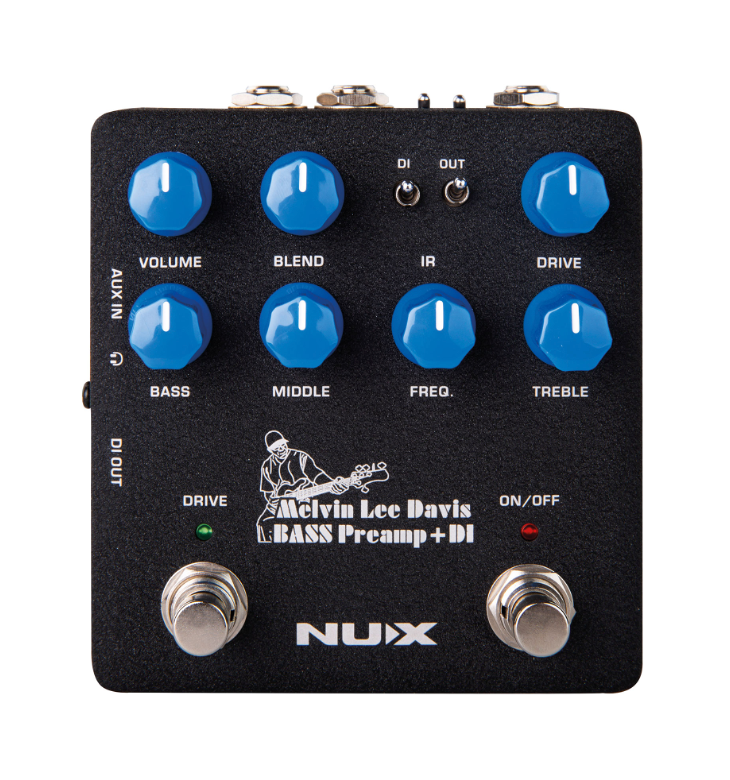

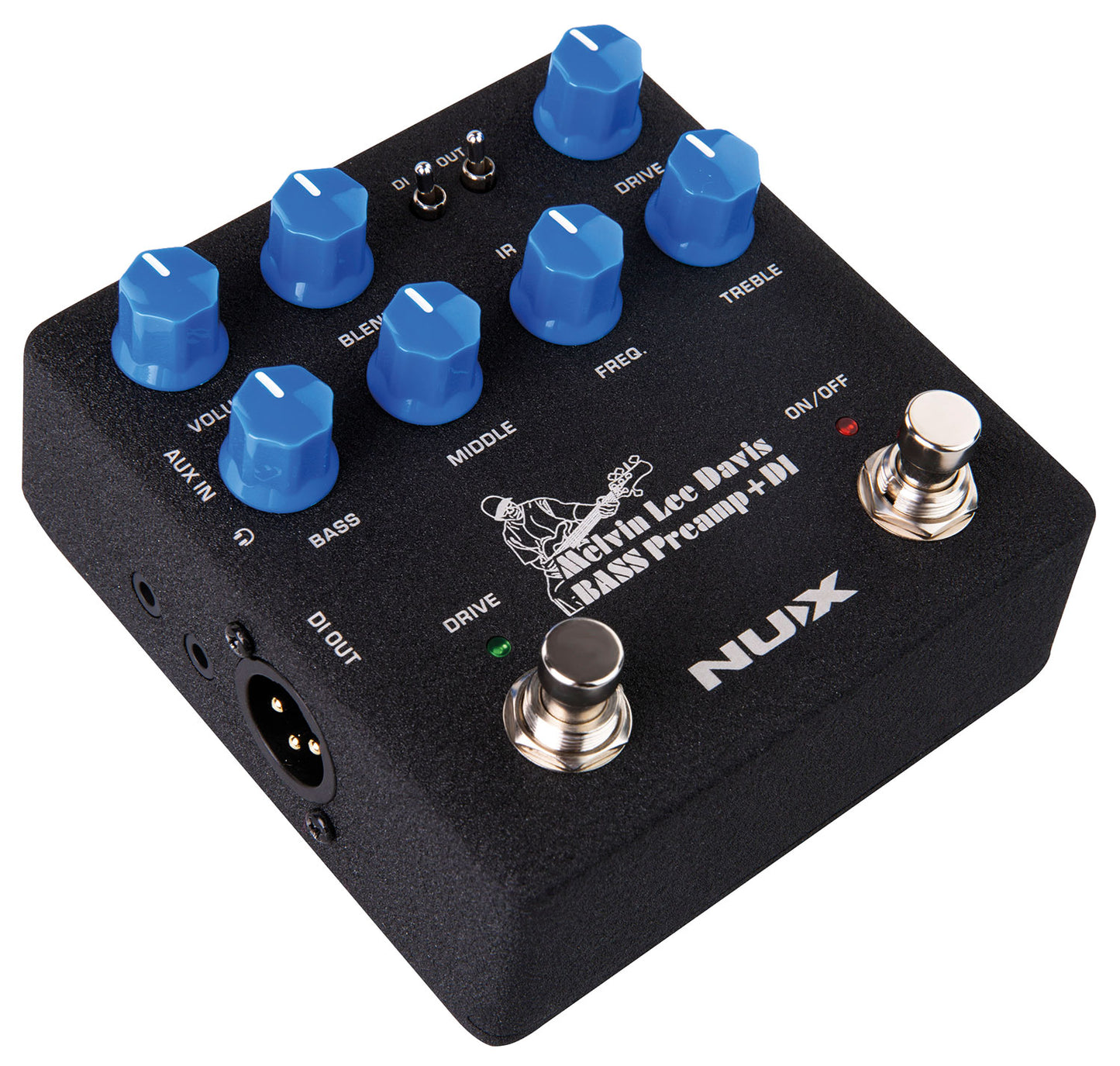

MLD Bass Preamp + DI Pedal

Signature preamp pedal of acclaimed U.S. bass guitar virtuoso Melvin Lee Davis. Features include 3-band EQ with swept mid-band, separate Drive footswitch for extra gain on demand, Impulse Response loader for custom cabinet simulation and balanced D.I. output for feed direct to a live or studio mixing console. Additional jack output, through connection to an amplifier, auxiliary line input and headphone outputs give even further options. USB connection to a P.C. for recording and control via the proprietary NU-X software provides deeper editing possibilities. For ultimate bass tone, the MLD preamp can be the main control unit for any live or studio rig.

• USB connection for editing and audio interface
• Individual Preamp and Drive footswitches
• 3-band EQ with swept mid-band
• I.R. loader cabinet emulation

• Power supply - 9Vdc, >150mA adaptor (not supplied)
• DC input connection - 5.5 x 2.1mm DC jack
• Inputs - Instrument 6.3mm jack, Aux 3.5mm jack

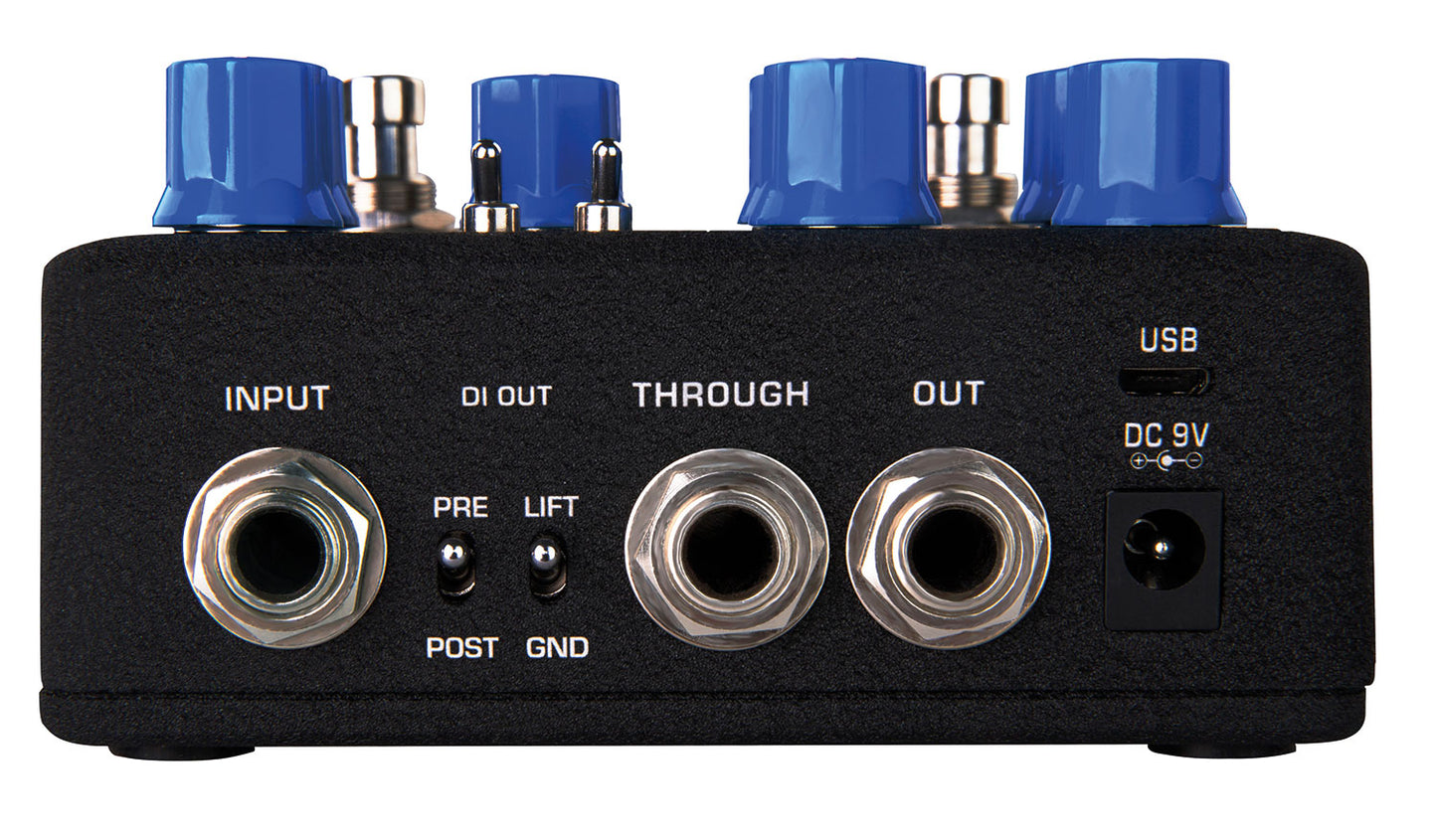

• Outputs - 6.3mm jack Out + Thru, XLR D.I. and 3.5mm headphones jack
• Frequency response - 20Hz - 20kHz (-1dB)
• Dynamic range - 100dB
• Sampling format - 48kHz 32-bit
• PC Com port - Micro USB (audio/firmware/editing)
• Dimensions - 115 x 105 x 58mm
• Weight - 460g
