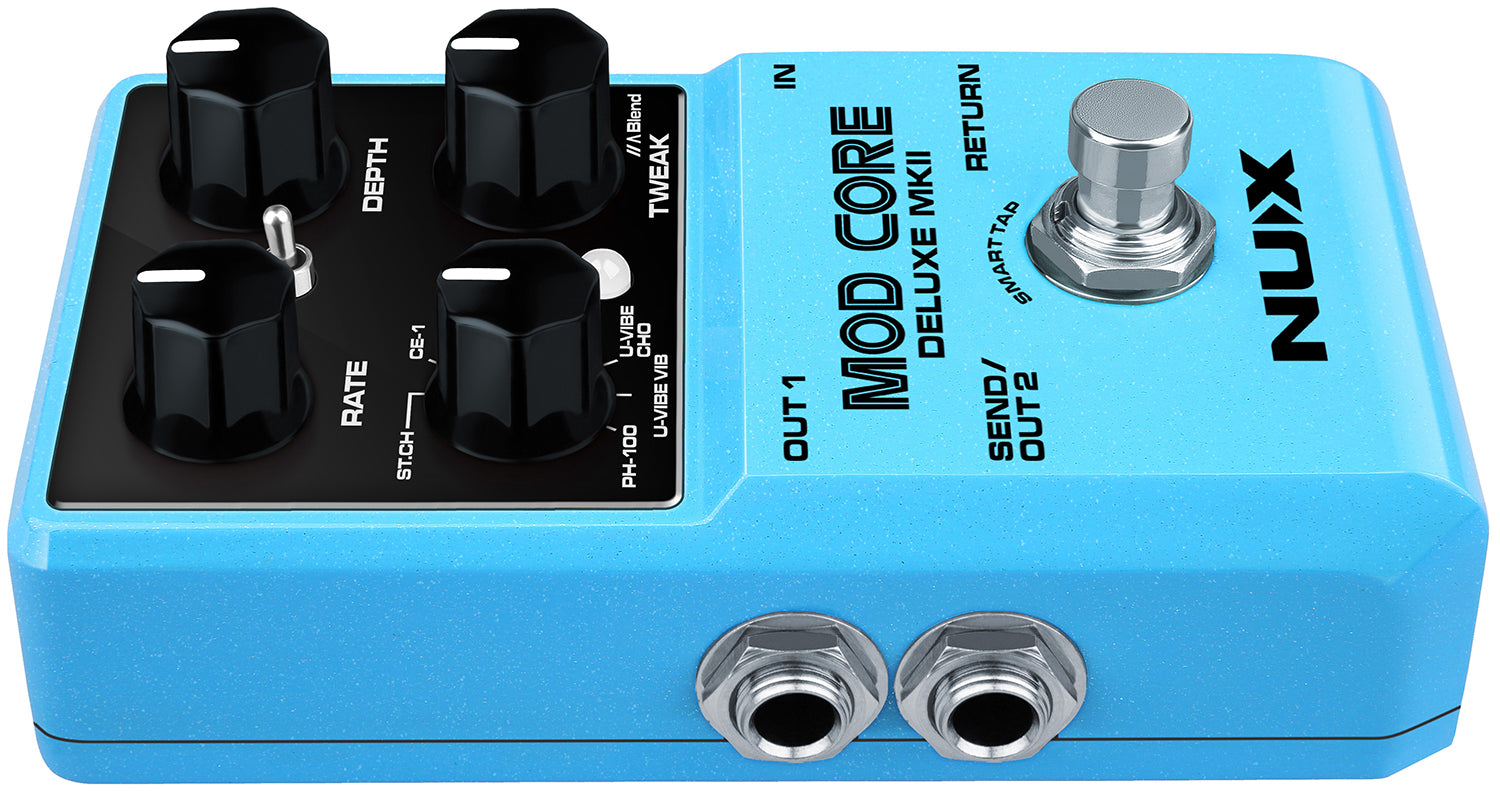

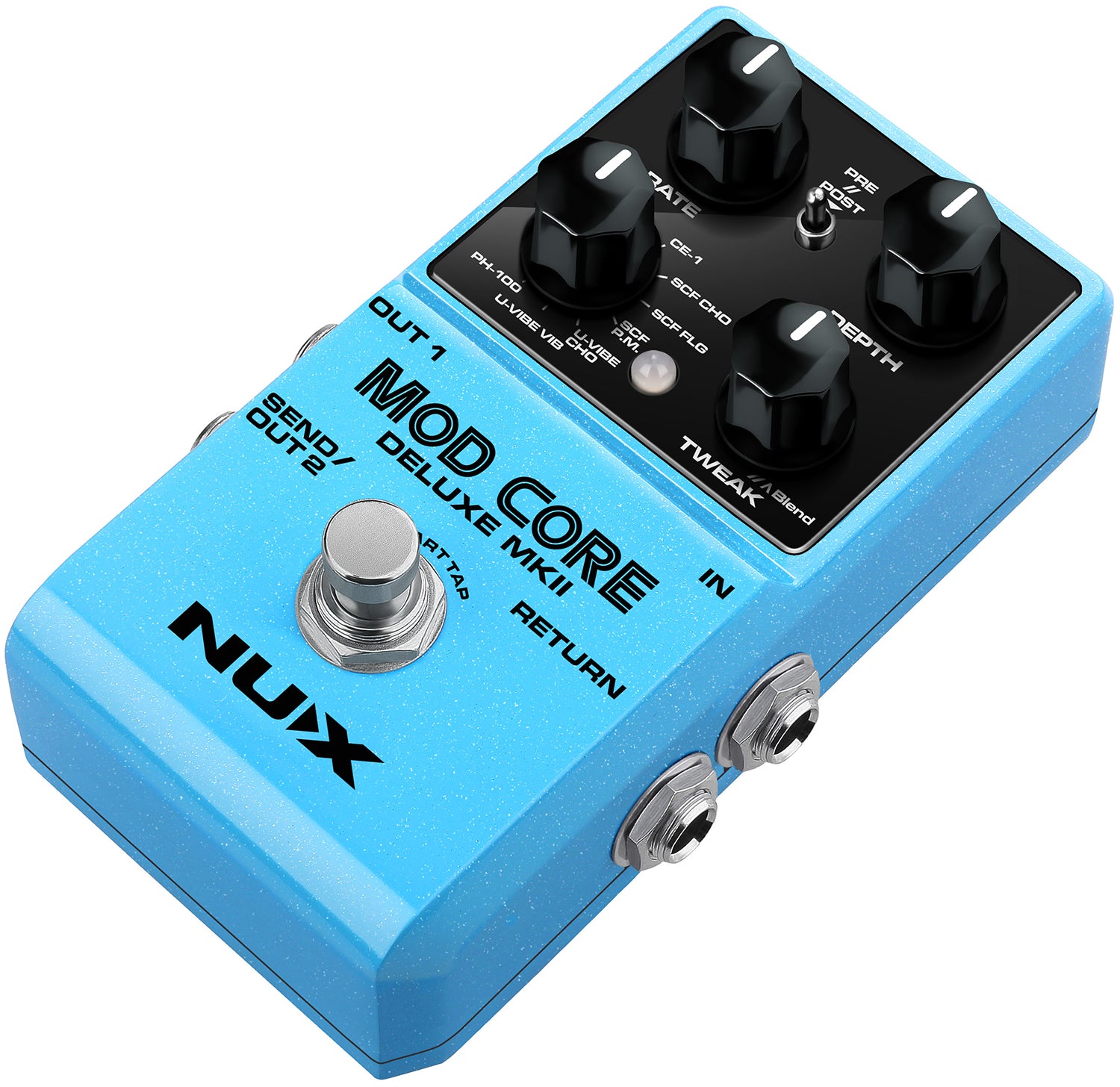

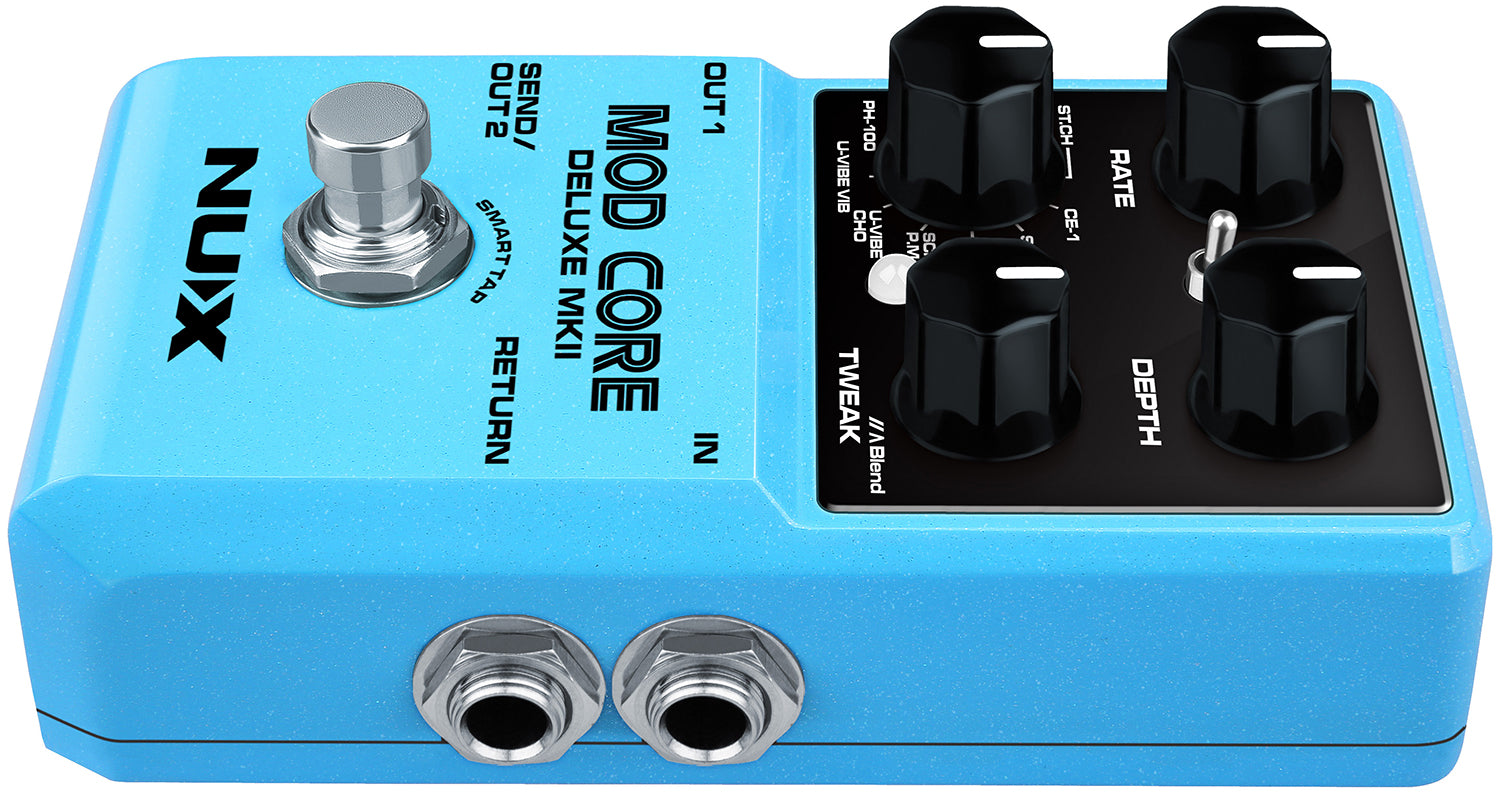

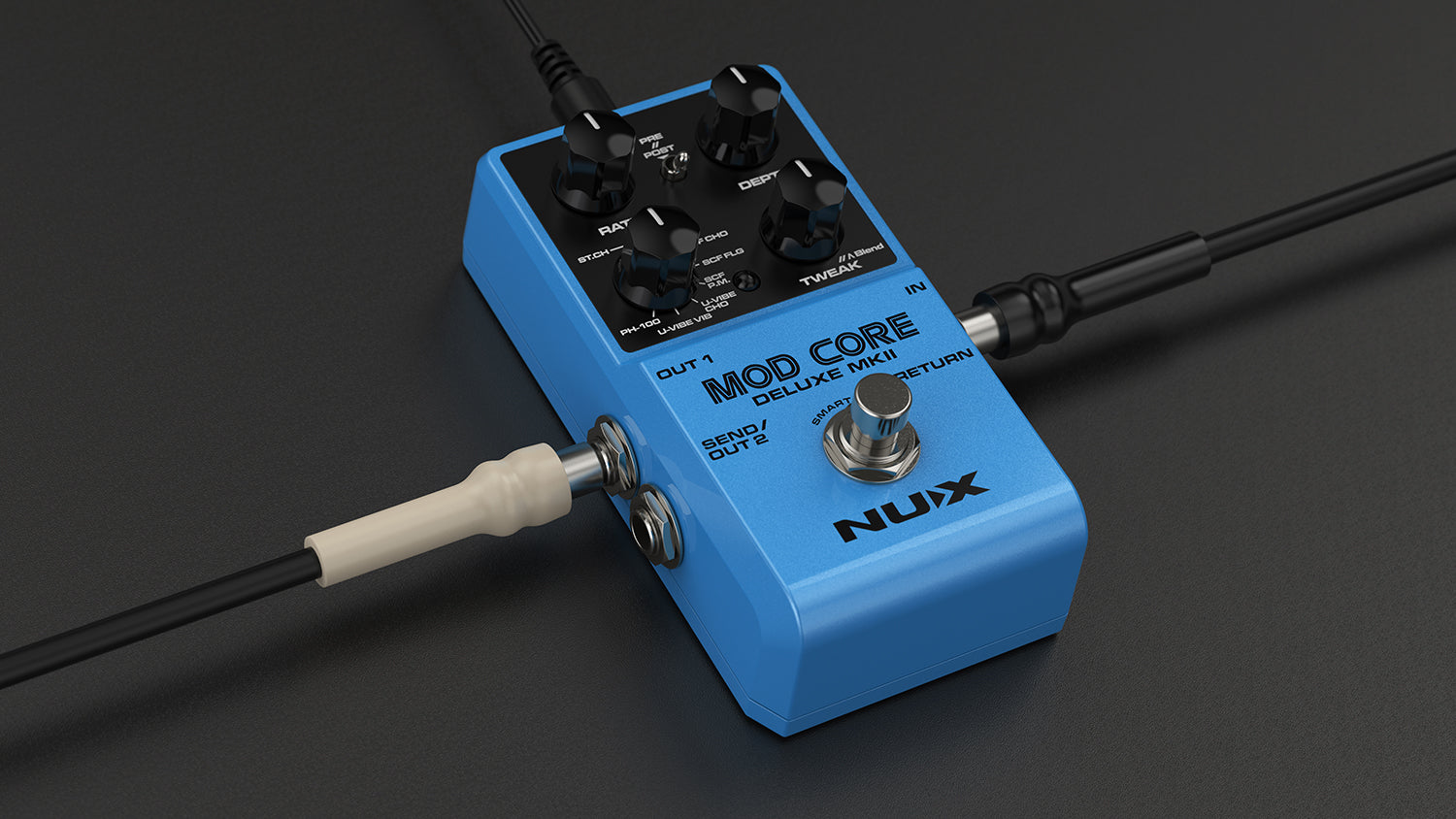

Mod Core Deluxe mkII Pedal

Evolving from the popular Mod Core Deluxe pedal, this mkII version has new effect models, signal routing options and editing features. A choice of 8 modulation models range from chorus to phasing and vibrato, with Rate and Depth controls and an additional Tweak control to adjust a third parameter specific to each effect and a further Blend adjustment in Alt mode. Rate can also be adjusted using a Tap Tempo function of the main footswitch. Mod Core Deluxe mkII has routing options for mono out, stereo out or mono with send/return loop. When using the loop, there are 3 routing options for pre, parallel and post effect placement. If you have space for just one mod effect on your board, the Mod Core Deluxe mkII offers a choice of 8 high quality pedals in a single compact stomp box format.

• 8 distinct modulation effect models
• Analog dry signal path for low noise and zero latency
• Mono or stereo output
• Built-in send-return loop
• 4 parameter control for effect settings
• USB-C for firmware updates

• Power supply - 9Vdc (power adaptor required)
• DC input connection - DC5521 jack (for optional adaptor - pin-negative)
• Current consumption - <120mA

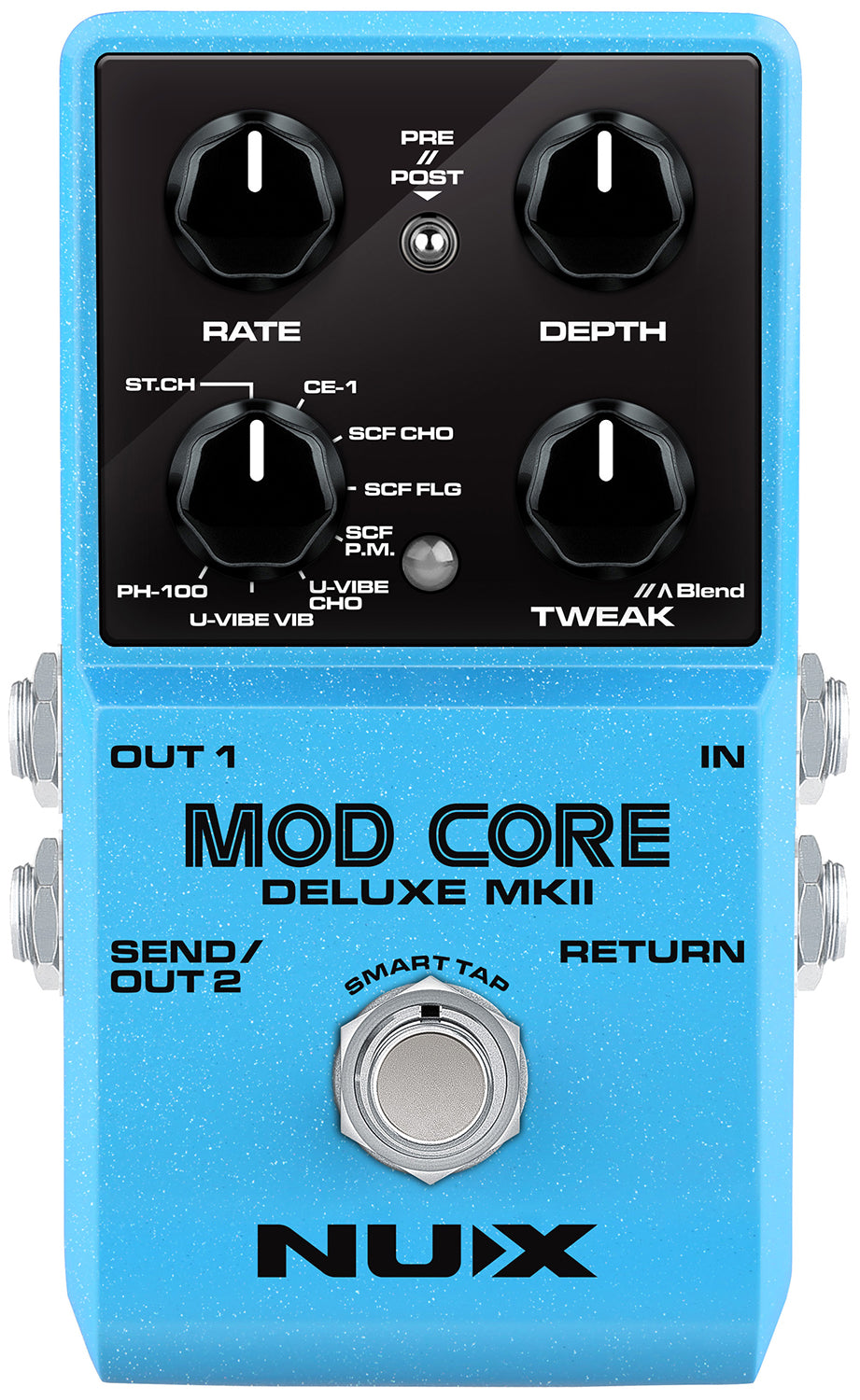

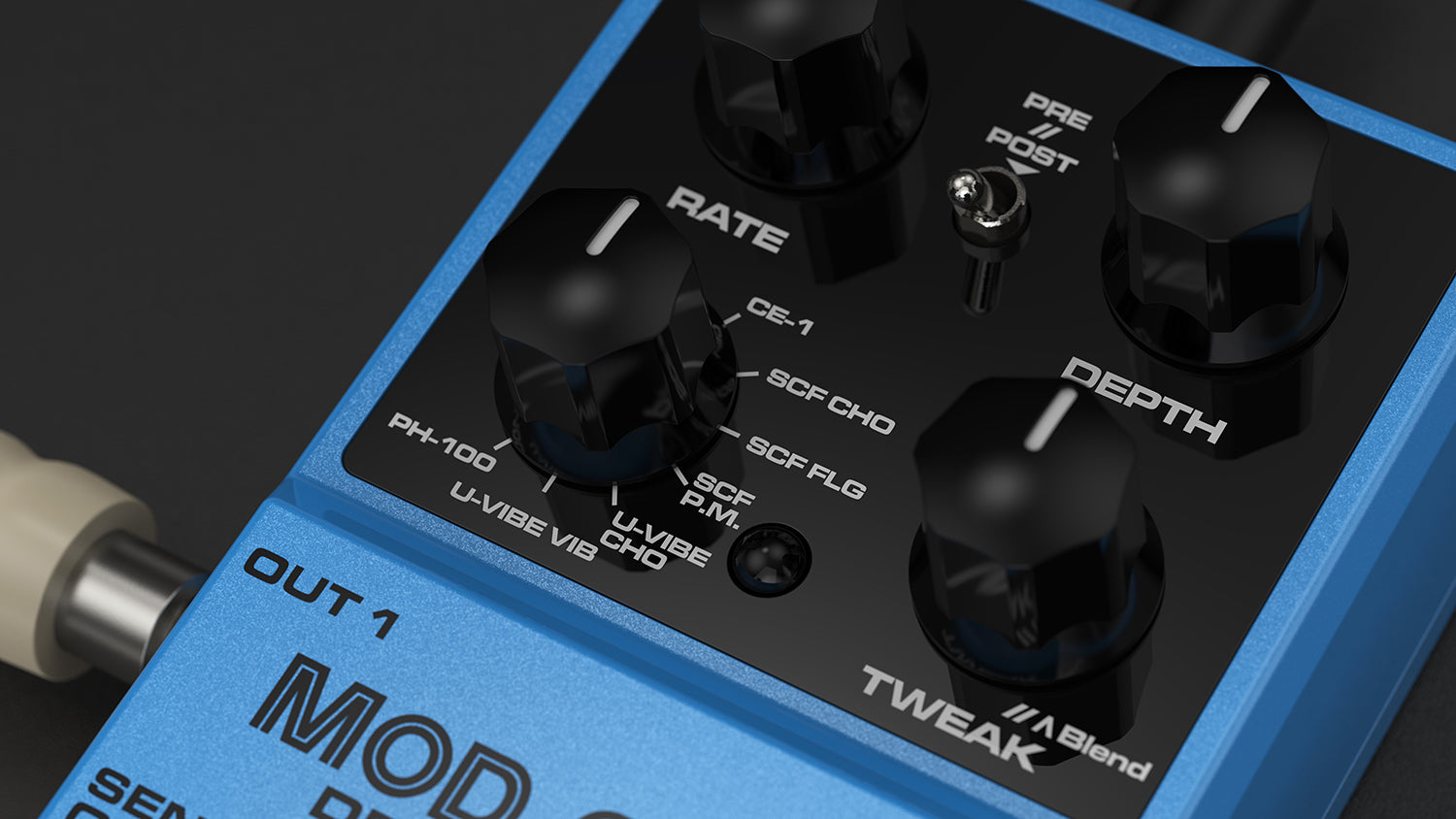

• Controls - Rate, Depth, Tweak & Mod type
• Modes - ST.CH, CE-1, SCF CHO, SCF FLG, SCF PM, U-VIBE CHO, U-VIBE VIB, PH-100
• Inputs - Instrument in & Loop return (6.3mm mono jack)
• Outputs - Out1 & Out2/Loop send (6.3mm mono jack)
• Tempo range - 50-200 bpm
• Sampling format - 48kHz, 24-bit
• Input impedance - 1M ohm
• Output impedance - 1k ohm
• Dynamic range - 104dB
• Dimensions - 122 x 72 x 47mm
• Weight - 270g
