NUX

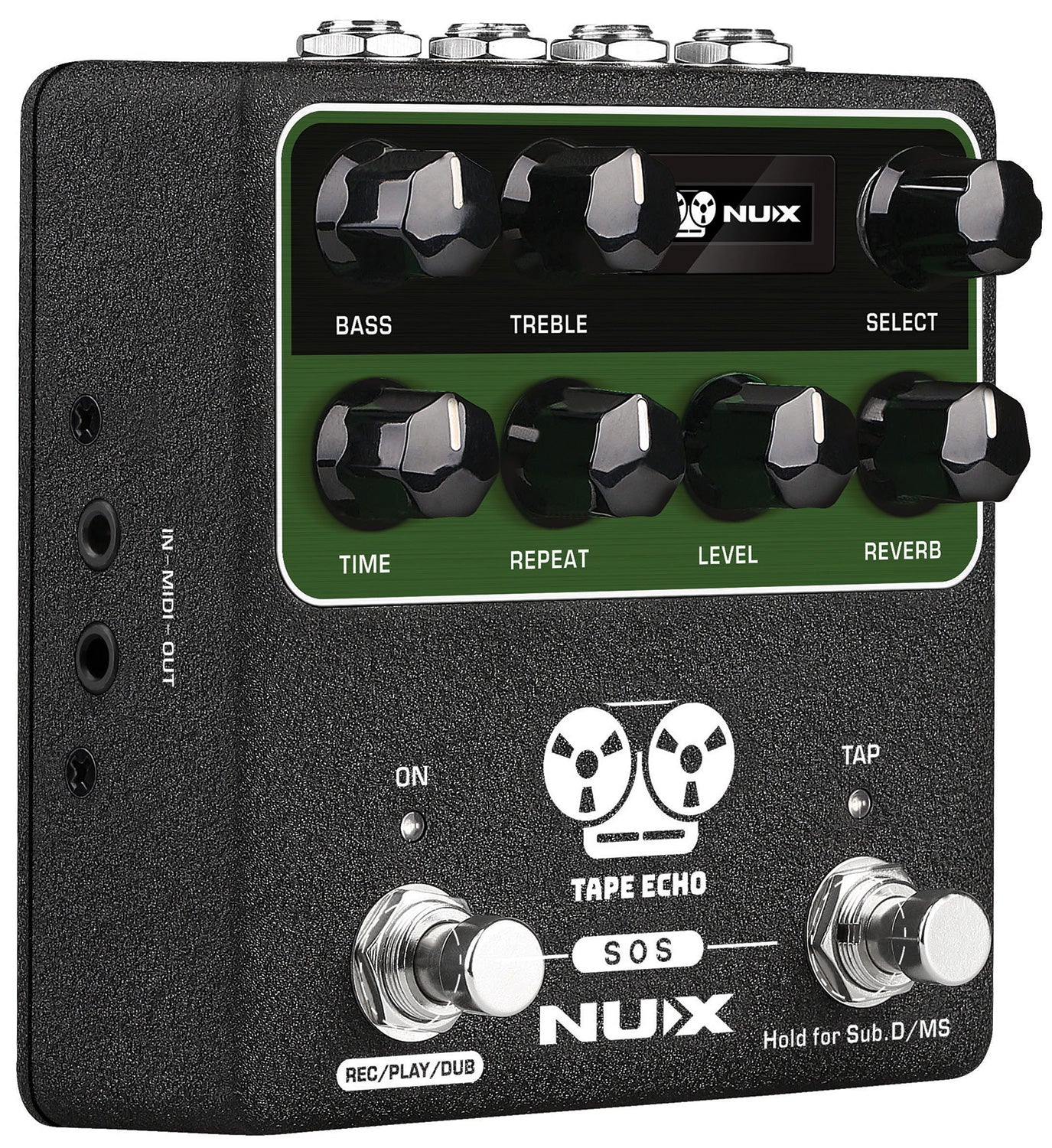

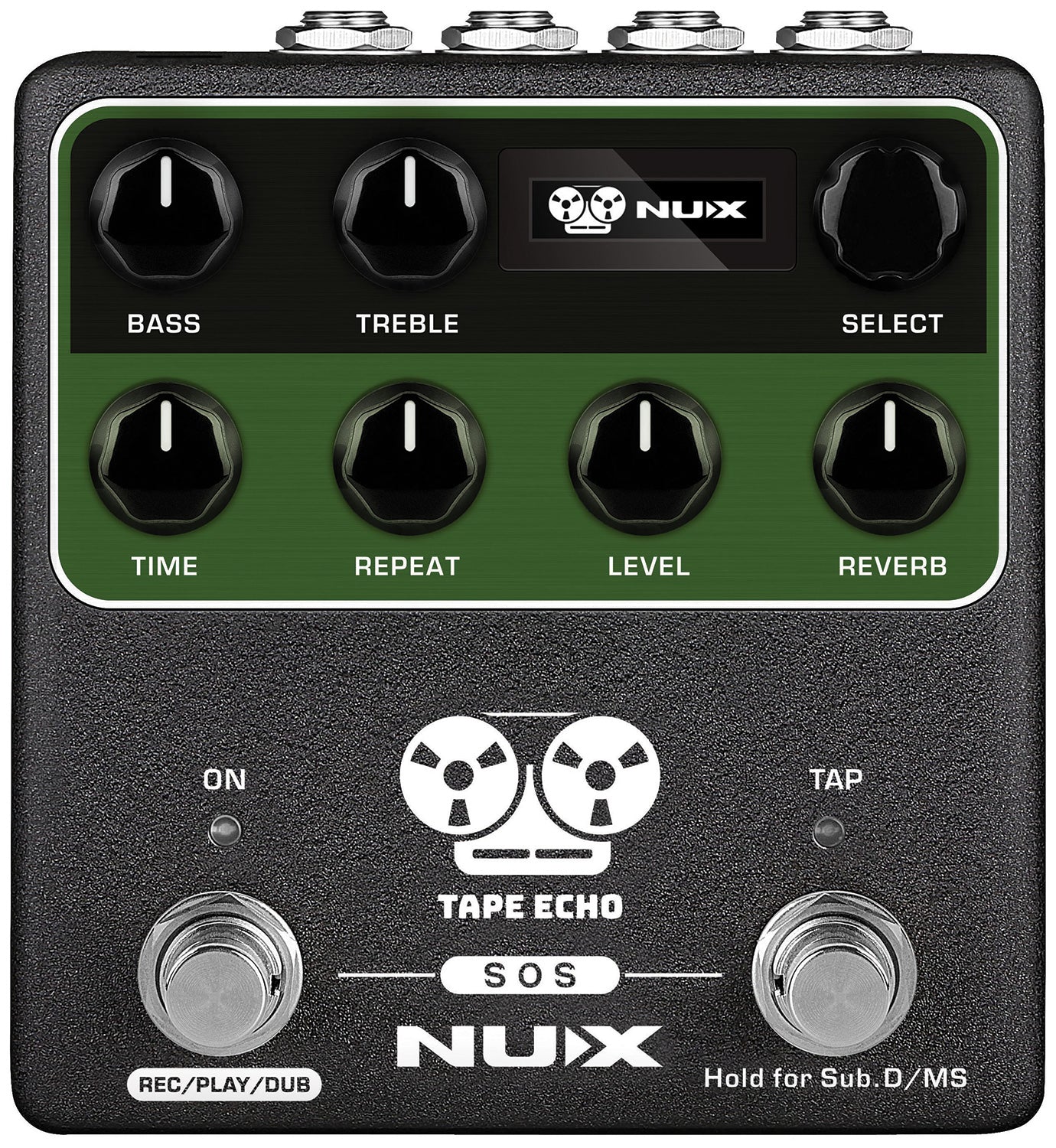

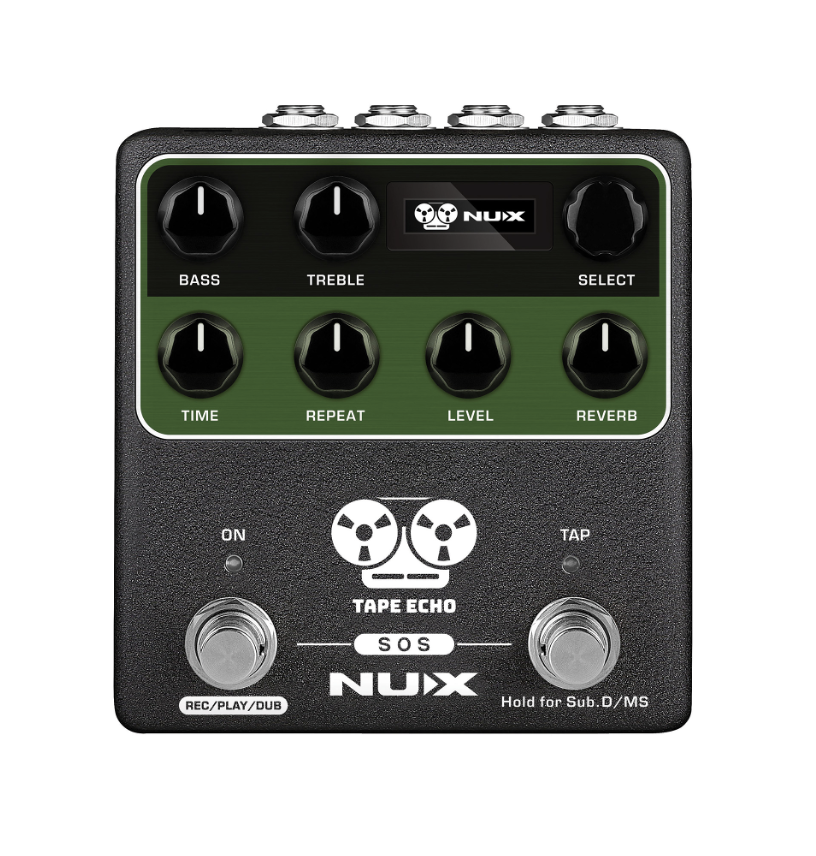

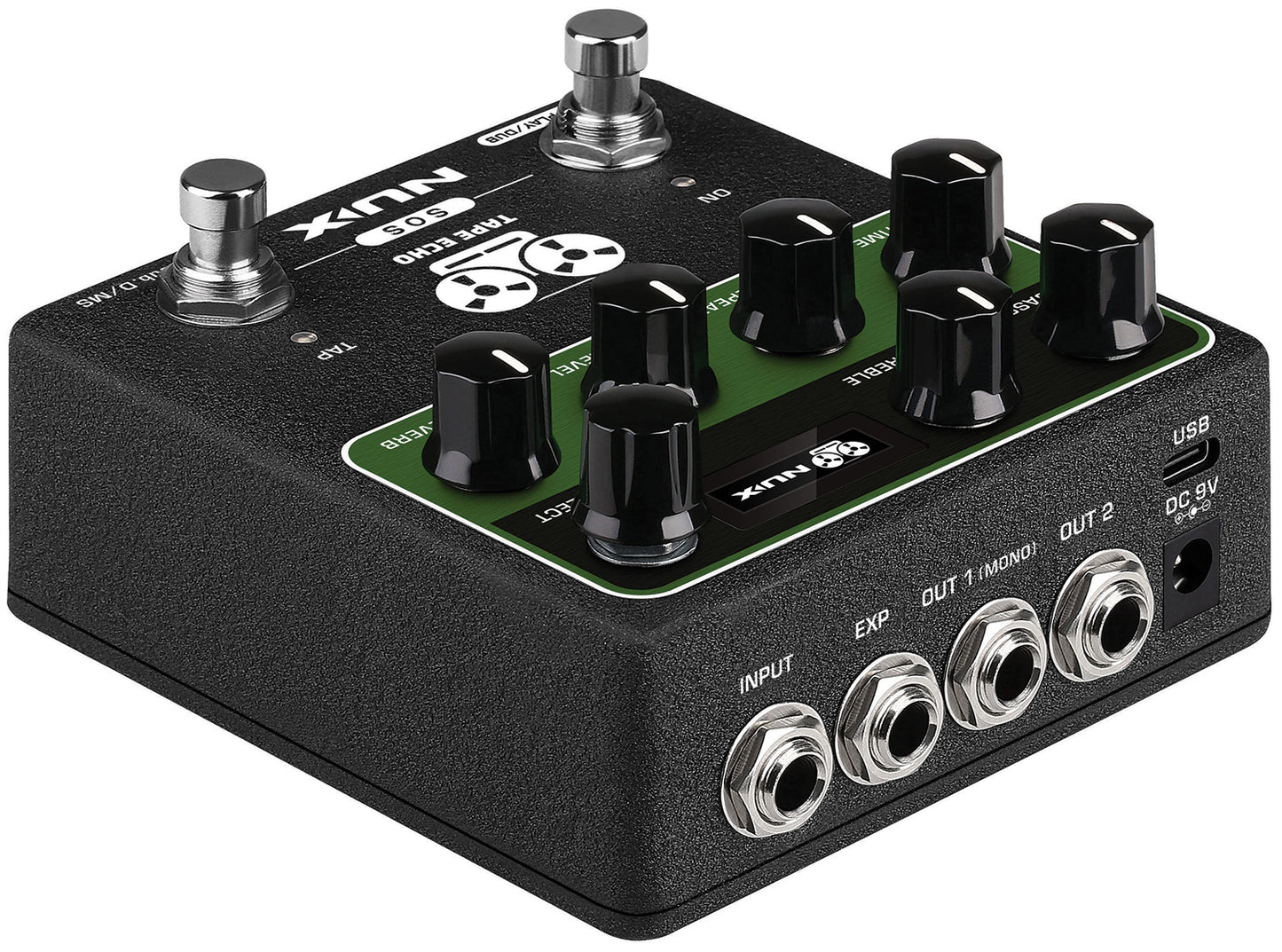

Tape Echo Pedal
Tape Echo Pedal
Tape Echo is an echo and delay processor with 7 different types of simulation to recreate the sound of vintage echo units. In addition to classic tape echo simulation, the NDD-7 has a separate spring reverb effect, sound-on-sound (SOS) for operation as a 40 second looper, and up to 1600ms of delay. For authenticity, the NDD-7 also has Wow & Flutter settings and Saturation adds natural compression and degradation, which can even drive into self-oscillation, like a true tape echo. Two foot switches operate as effect on/off and tap tempo and they double as looper and display controls. Above the foot switches are Time, Repeat, Level and Reverb controls and 2-band EQ governs the tone of repeats. USB connectivity and MIDI compatibility give further possibilities for deep control and integration with DAW and project studio setups. A full vintage echo collection in a single compact pedal for those seeking the genuine retro echo sound.
- Authentic tape echo machine simulation
- Independent spring reverb effect
- MIDI in and out
- External expression pedal input

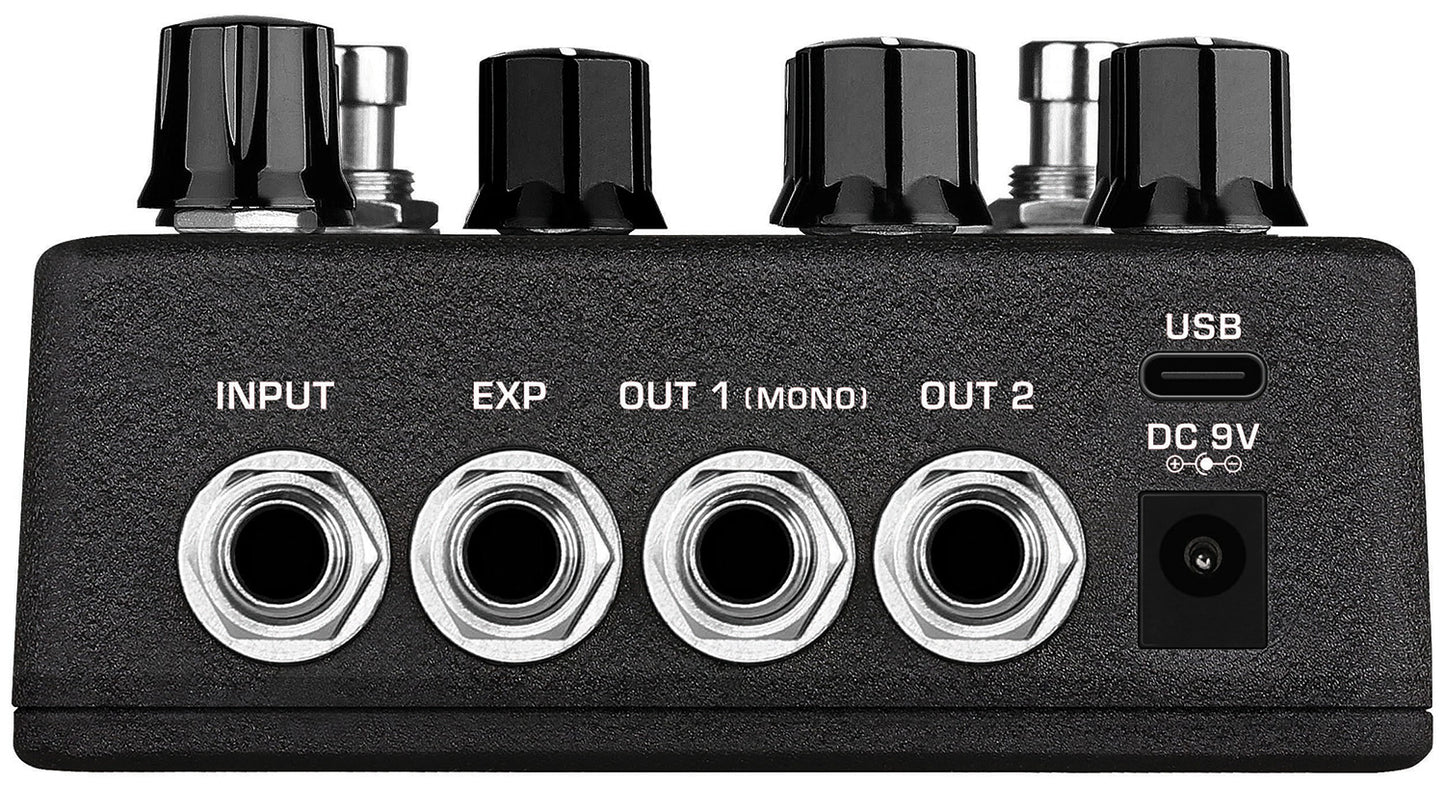

- Stereo or mono output
- USB port for PC editor and firmware upgrades
- Power supply - 9Vdc, 300mA (min) pin-negative (not included)
- Controls - Time, Repeat, Level, Reverb, Bass, Treble, Select
- Current consumption - <150mA
- Sampling Frequency - 48kHz
- Sampling format - 32-bit
- Frequency response - 20Hz - 20kHz (-1dB)
- Input impedance - 5M Ohms
- Input level - 1.5V max
- Output impedance - 100 Ohms
- Output level - 1.5V max
- Latency - 1ms
- Dynamic range - 103dBu / 105dBu (A-weighted)
- THD +N - 0.0038% (1Vrms, 1kHz) / 0.01% (1Vrms, 1kHz)
- Dimensions - 115 x 105 x 58mm
- Weight - 440g
