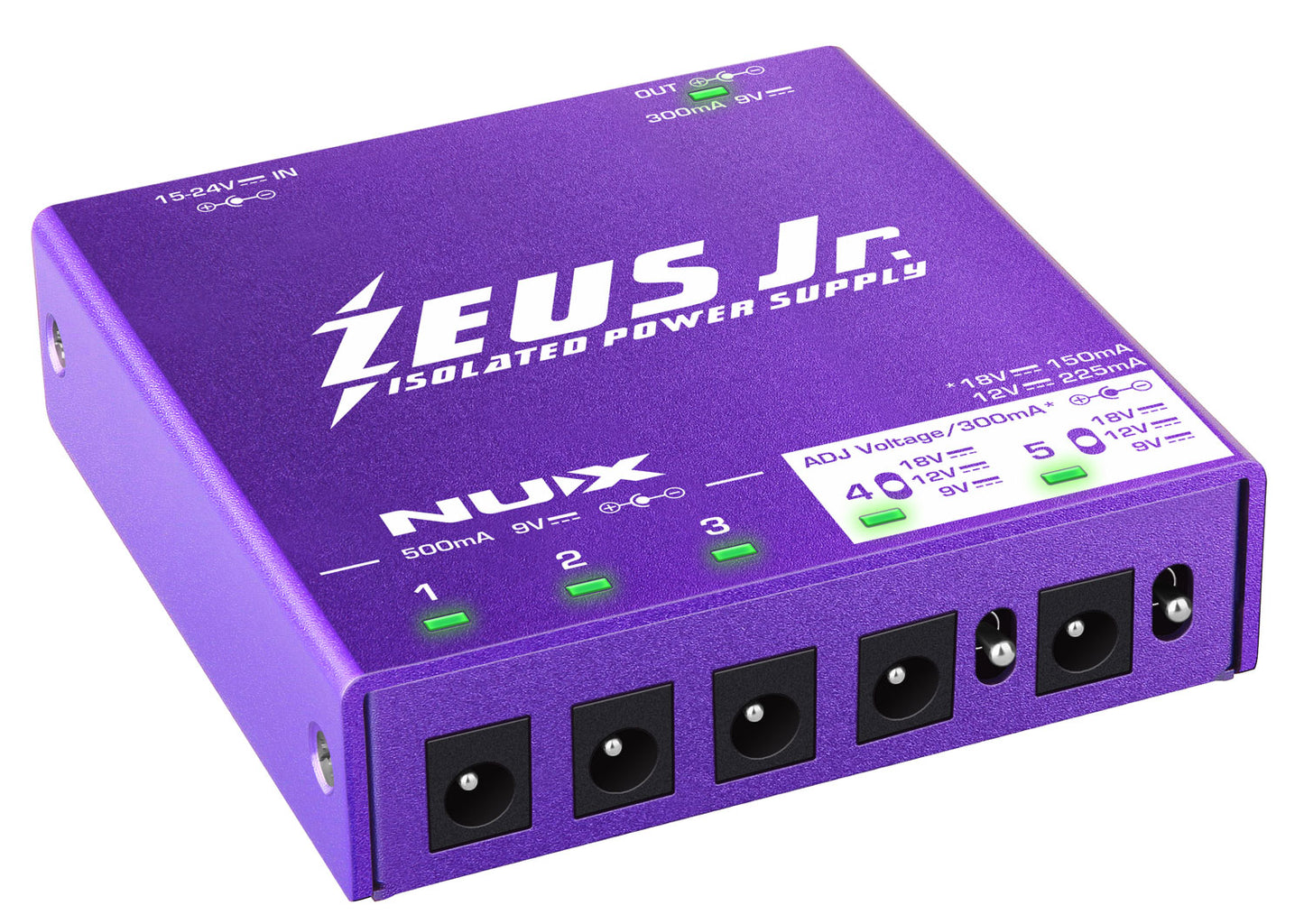

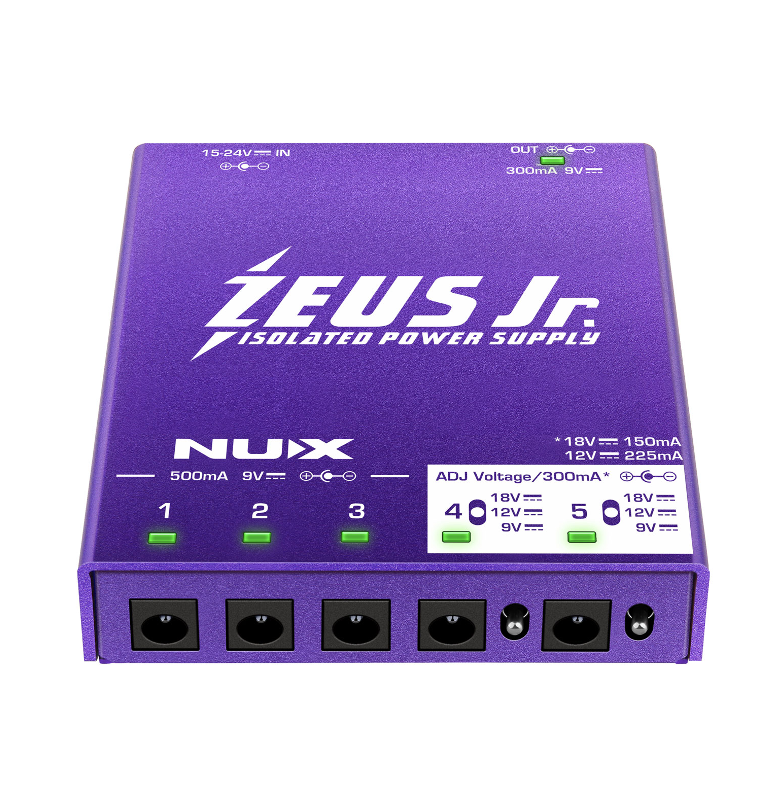

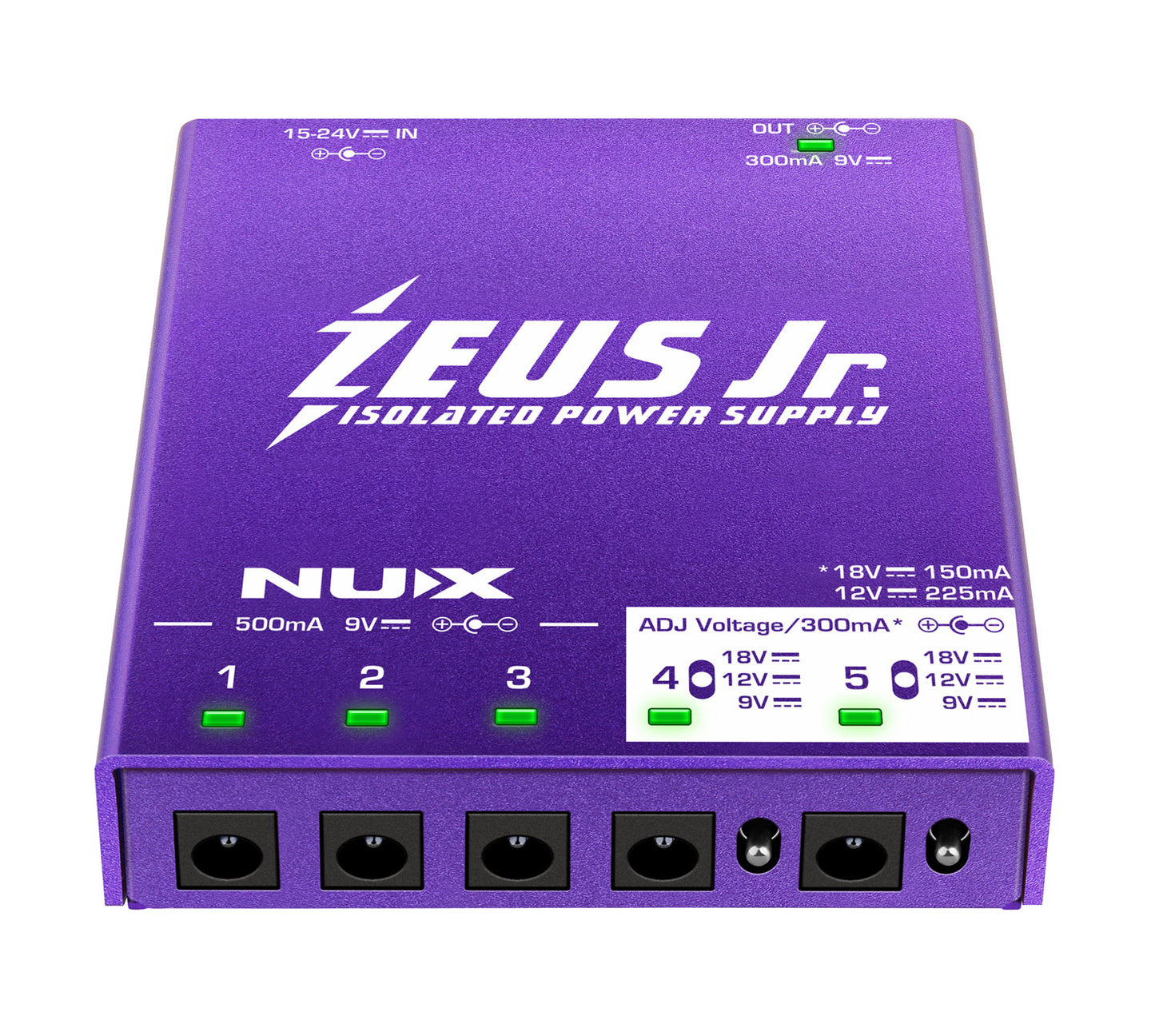

Zeus Jr. Guitar Pedal Power Supply

Following on from the success of the Zeus pedal power supply, NU-X have developed the Zeus Jr. for multi-pedal users with more compact effect setups. Zeus Jr. retains the same double isolated power circuit to help eliminate noise and keep the power chain clean. 3 outputs deliver 9Vdc up to 500mA each and a fourth can provide 9Vdc at 300mA. 2 additional outputs have selectable 9/12/18V outputs for pedals that require or can handle different voltages. Supplied with 6 x DC5521 angle power leads and a further reverse polarity and DC minijack lead. Powered from the mains via its in-line DC switching power supply, this is the ideal solution for players that use multi-pedal rigs where noise issues could otherwise be problematic.

• Extremely low noise circuitry
• Fully isolated outputs
• Multiple voltage options
• High current capacity
• Supplied with various DC link cables to handle most pedal input types

• Power supply - 100-240Vac, 50/60Hz (IEC with 15Vdc in-line adaptor)

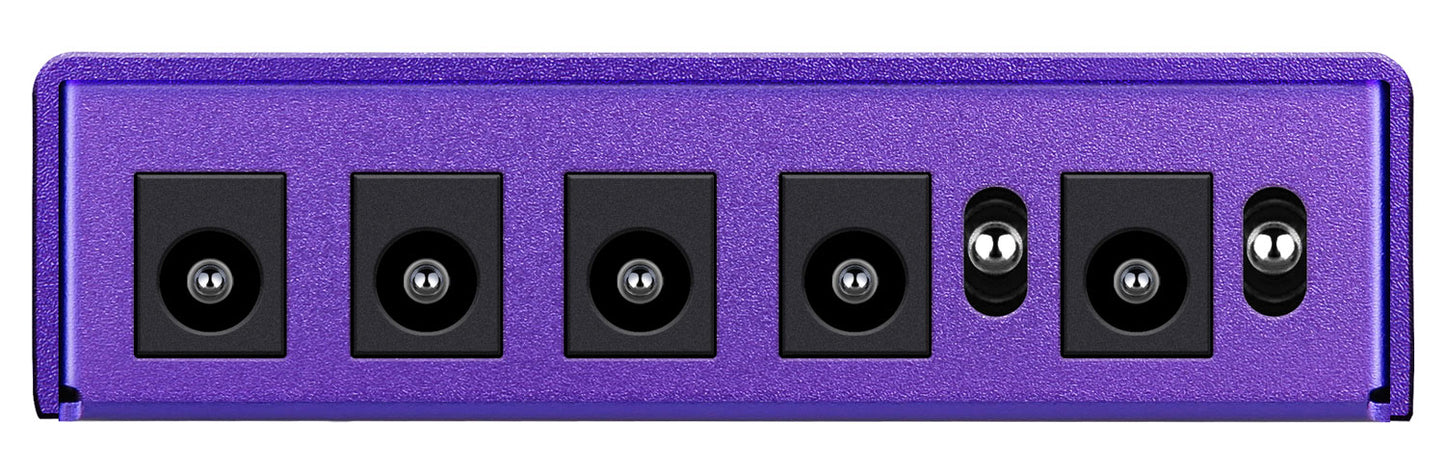

• Outputs - 4 x 9Vdc, 2 x 9/12/18Vdc (DC5521 jack)
• Power output - 21.6W max
• Dimensions - 90 x 88 x 24mm
• Weight - 184g
